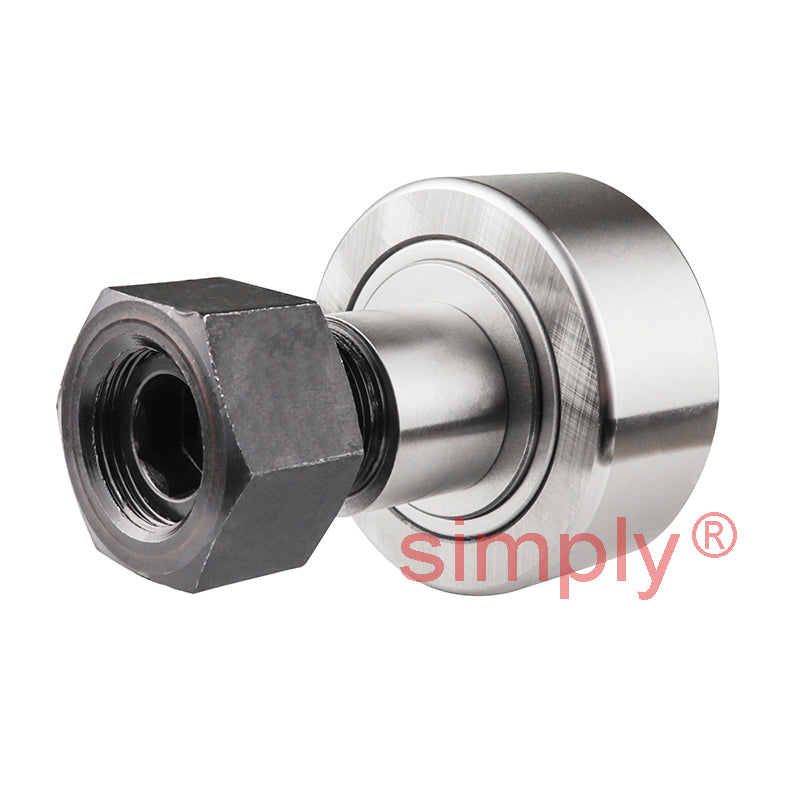

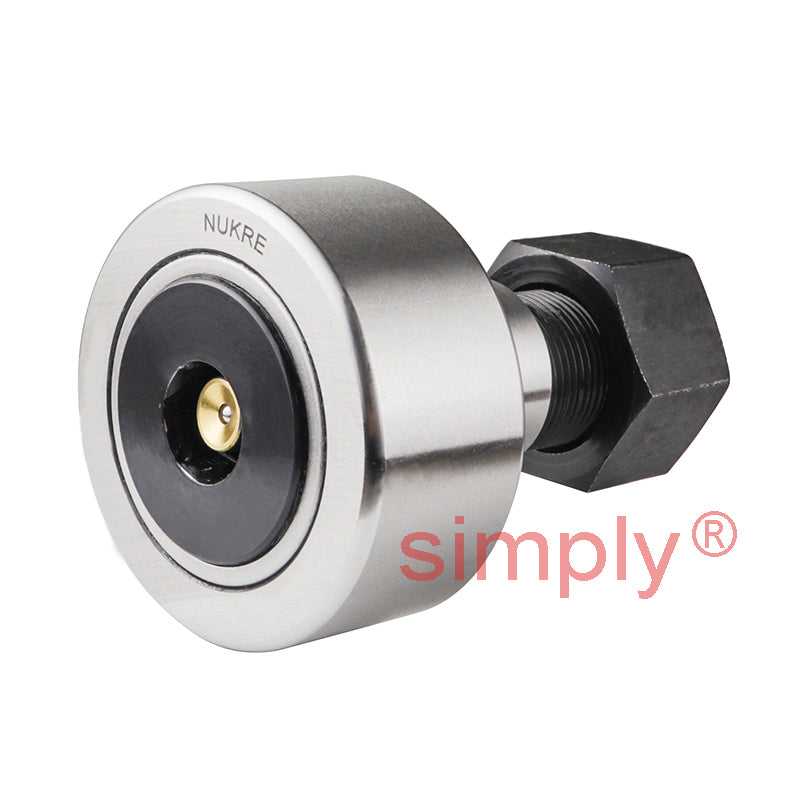

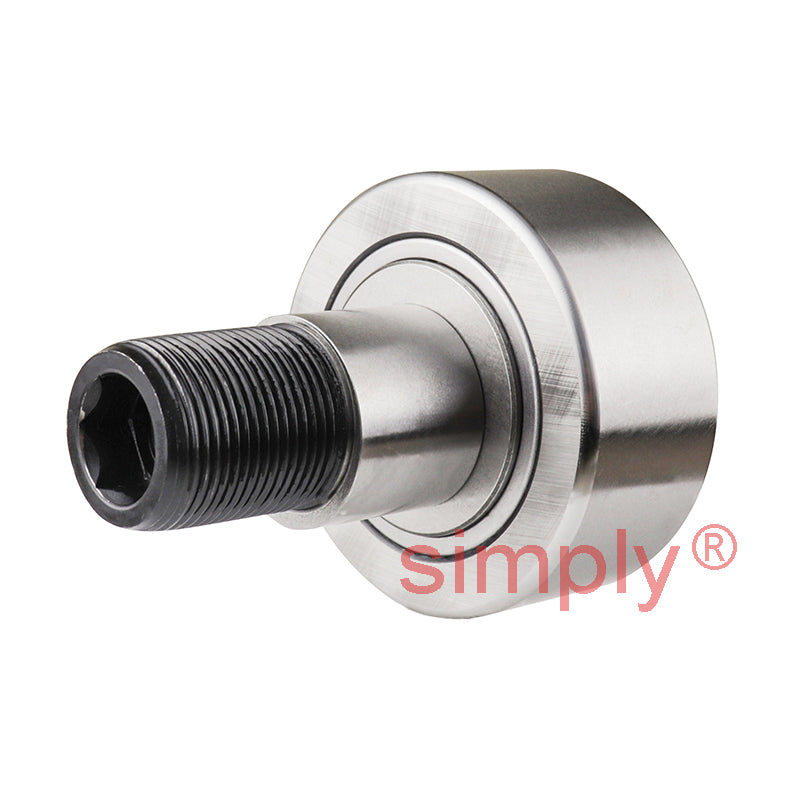

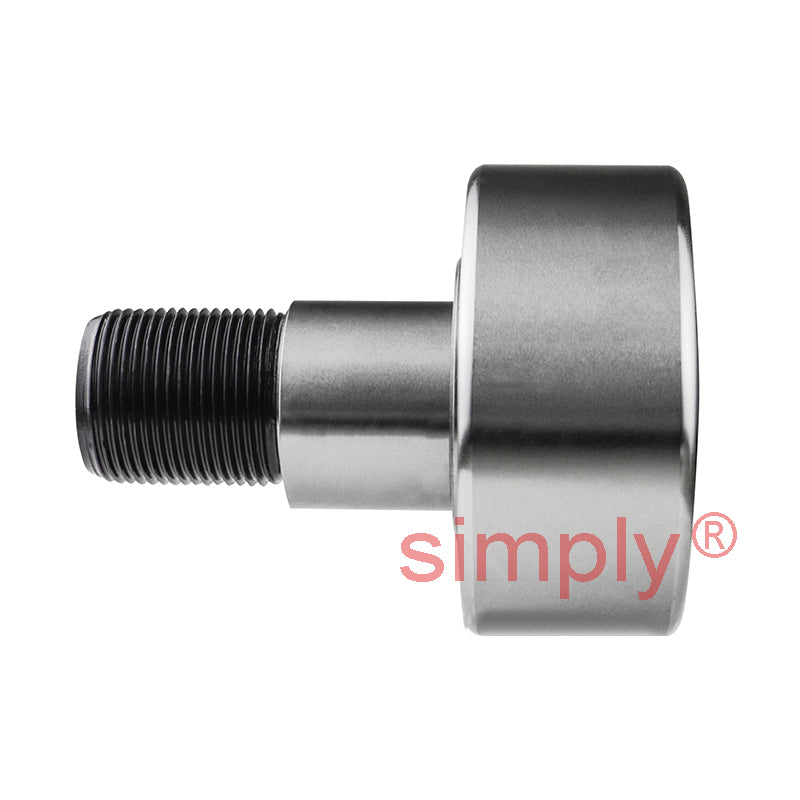

• Budget NUKRE35A Crowned Cam Follower with Eccentric Stud 35x18x20 M16x1.5 Thread
1 1

SKU: NUKRE35A-EU

Budget NUKRE35A Crowned Cam Follower with Eccentric Stud 35x18x20 M16x1.5 Thread

Budget NUKRE35A Crowned Cam Follower with Eccentric Stud 35x18x20 M16x1.5 Thread
$94.16 ex VAT
$94.16 ex VAT
Sale Sold out

In stock

Price Break
10+ $63.07
19+ $59.53
29+ $58.82
39+ $58.11
49+ $57.41
74+ $56.70
99+ $53.15
199+ $52.44
249+ $51.74
499+ $51.03
999+ $49.61

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Outside Diameter:
35mm
Width:
18mm
Pitch:
M16x1.5
Technical
D 35mm
C 18mm
d (Stud Diameter) 20mm
B 52mm
B1 29.5mm
C1 3.8mm
d1 27mm
G M16x1.5
G1 17mm
r min 0.6mm
SW 8mm
Eccentric stud c 1mm
B3 12mm
Dynamic load 16800 N
Static load 17600 N
Fatigue load limit Pu 2000 N
Radial dynamic load 8650 N
Radial static load 12200 N
Speed rating 6500 rpm
Weight 180 g
