SKU: NUP205-CDX

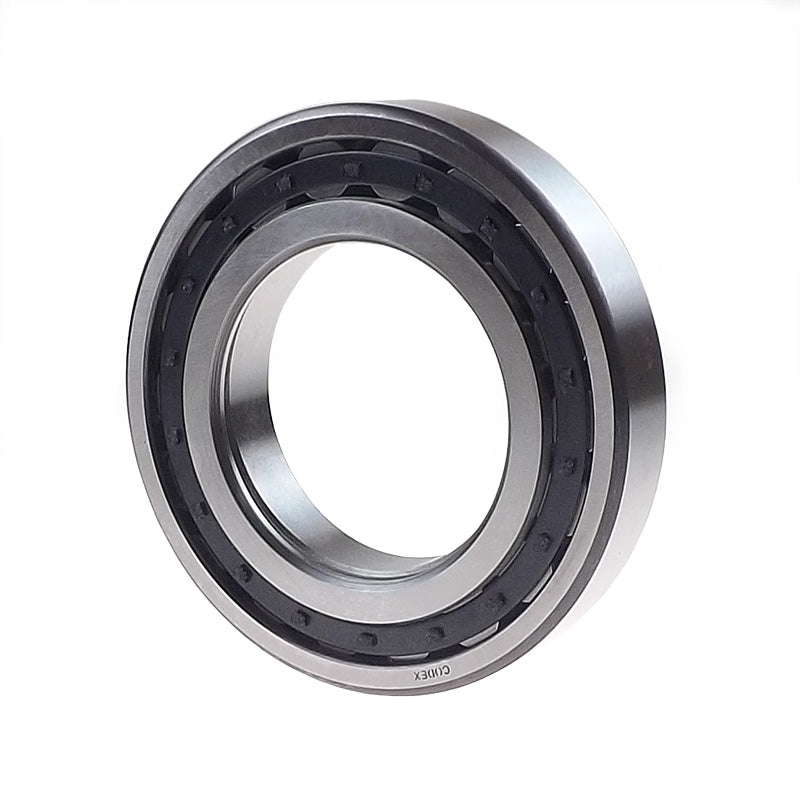

Codex NUP205 Single Row Cylindrical Roller Bearing 25x52x15mm

Name: Codex NUP205 Single Row Cylindrical Roller Bearing 25x52x15mm
Brand: Codex
SKU: NUP205-CDX
Price: 34.77 USD
Availability: InStock

$34.77 ex VAT

Sale Sold out

In stock

Price Break

10+ $23.29

19+ $21.98

29+ $21.72

39+ $21.46

49+ $21.20

74+ $20.93

99+ $19.63

199+ $19.36

249+ $19.10

499+ $18.84

999+ $18.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 25mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	25mm
D	52mm
B	15mm
Dynamic load C	28.6 kN
Static load Co	27 kN
Fatigue load limit Pu	3.35 kN
Reference speed	14000 rpm
Limiting speed	16000 rpm
Weight	0.14 kg
Cage options	ML
d1	34.7mm
D1	43.8mm
F, E	31.5mm
r1r2 min	1mm
r3r4 min	0.6mm
da min	30.6mm
db min	36mm
Da max	46.4mm
ra max	1mm
rb max	0.6mm
kr	0.15
