SKU: NUP207-CDX

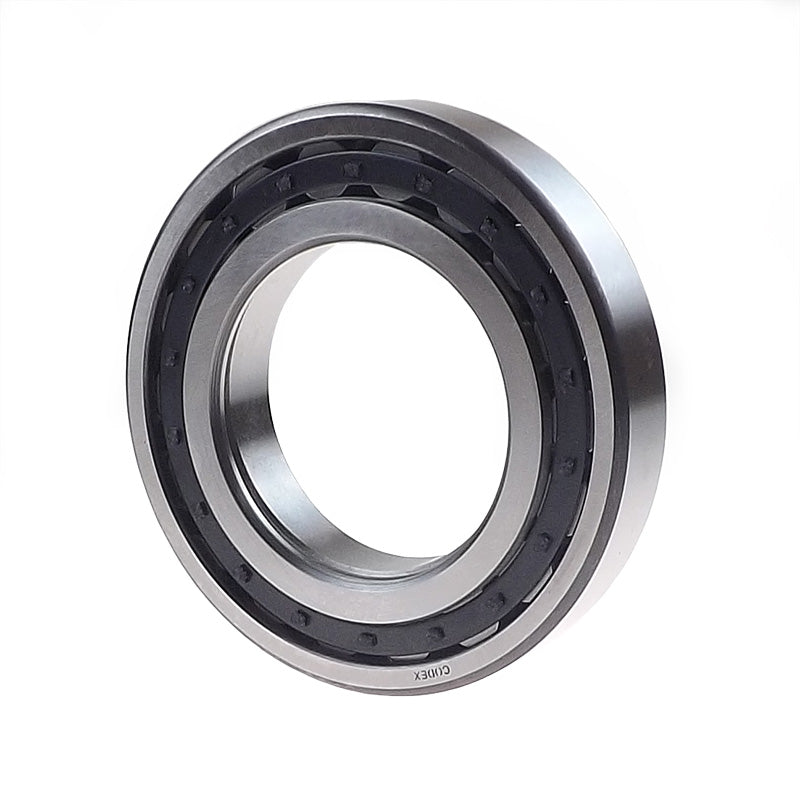

Codex NUP207 Single Row Cylindrical Roller Bearing 35x72x17mm

Name: Codex NUP207 Single Row Cylindrical Roller Bearing 35x72x17mm
Brand: Codex
SKU: NUP207-CDX
Price: 43.97 USD
Availability: InStock

$43.97 ex VAT

Sale Sold out

In stock

Price Break

10+ $29.45

19+ $27.80

29+ $27.47

39+ $27.14

49+ $26.80

74+ $26.47

99+ $24.82

199+ $24.49

249+ $24.16

499+ $23.83

999+ $23.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 35mm
Outside Diameter:: 72mm
Width:: 17mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	35mm
D	72mm
B	17mm
Dynamic load C	56 kN
Static load Co	48 kN
Fatigue load limit Pu	6.1 kN
Reference speed	11000 rpm
Limiting speed	12000 rpm
Weight	0.31 kg
Cage options	J.M.ML
d1	48.1mm
D1	60.7mm
F, E	44mm
r1r2 min	1.1mm
r3r4 min	0.6mm
da min	42mm
db min	50mm
Da max	65mm
ra max	1mm
rb max	0.6mm
kr	0.15
