• NUP209 Budget Single Row Cylindrical Roller Bearing 45x85x19mm
1 1

SKU: NUP209-EU

NUP209 Budget Single Row Cylindrical Roller Bearing 45x85x19mm

NUP209 Budget Single Row Cylindrical Roller Bearing 45x85x19mm
$49.24 ex VAT
$49.24 ex VAT
Sale Sold out

In stock

Price Break
10+ $32.98
19+ $31.13
29+ $30.76
39+ $30.39
49+ $30.02
74+ $29.65
99+ $27.79
199+ $27.42
249+ $27.05
499+ $26.68
999+ $25.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

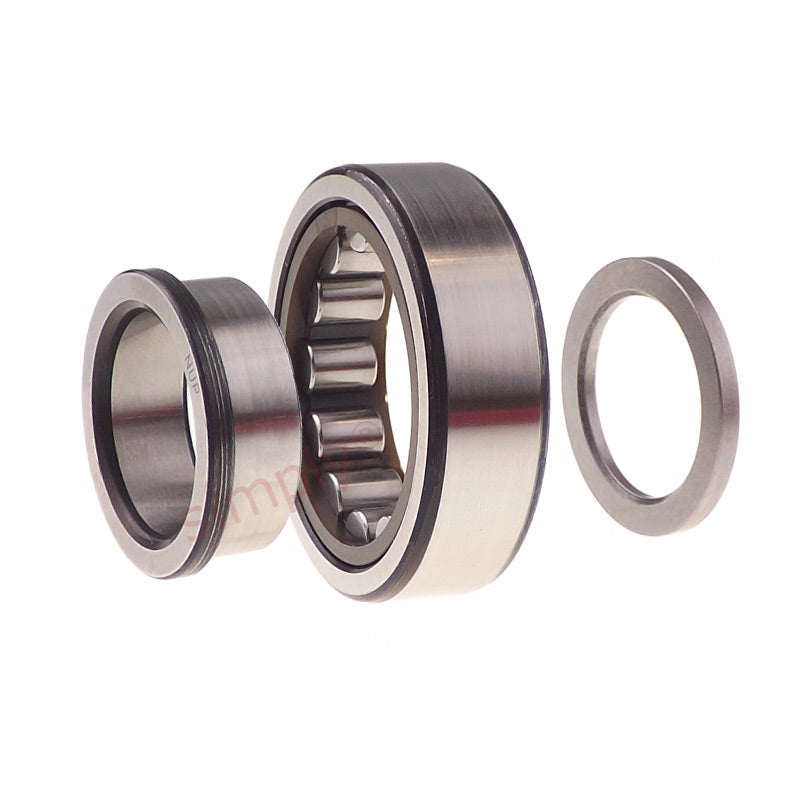

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
85mm
Width:
19mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 45mm
D 85mm
B 19mm
Dynamic load C 69.5 kN
Static load Co 64 kN
Fatigue load limit Pu 8.15 kN
Reference speed 9000 rpm
Limiting speed 9500 rpm
Weight 0.45 kg
Cage options J.M.ML
d1 59mm
D1 73mm
F, E 54.5mm
r1r2 min 1.1mm
r3r4 min 1.1mm
da min 52mm
db min 61mm
Da max 78mm
ra max 1mm
rb max 1mm
kr 0.15
