SKU: NUP215-CDX

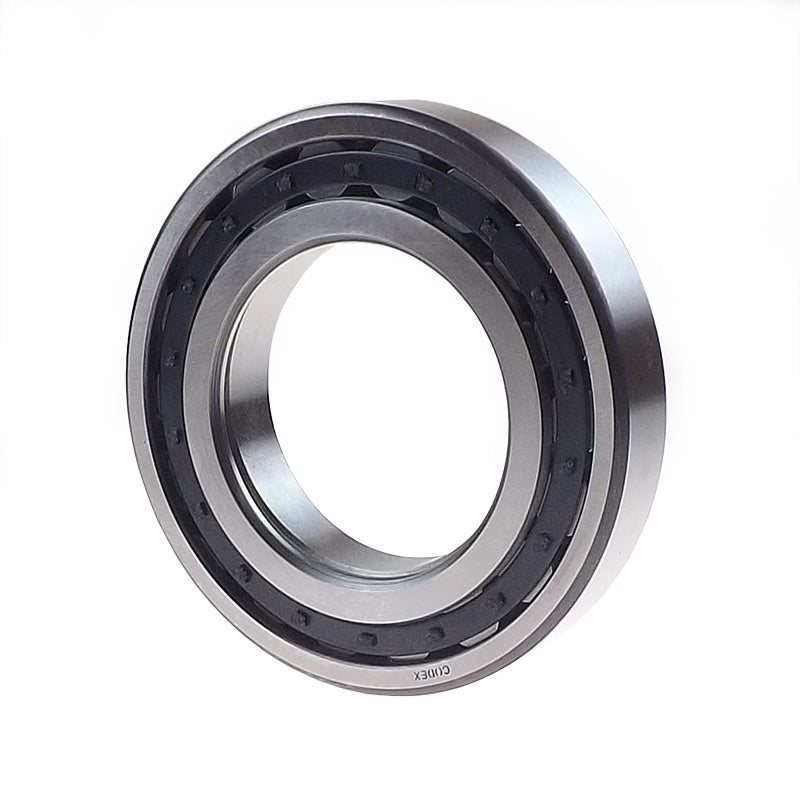

Codex NUP215 Single Row Cylindrical Roller Bearing 75x130x25mm
- Regular price
- $130.25 ex VAT
- Sale price
- $130.25
- Regular price
-
In stock
Quantity Price Breaks
10
$115.92
19
$109.41
29
$108.11
39
$106.81
49
$105.50
74
$104.20
99
$97.69
199
$96.39
249
$95.08
499
$93.78
999
$91.18
SKU:
NUP215-CDX
Codex NUP215 Single Row Cylindrical Roller Bearing 75x130x25mm
- Regular price
- $130.25 ex VAT
- Sale price
- $130.25
- Regular price
-
Description
|
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 75mm |
| D | = | 130mm |
| B | = | 25mm |
| Dynamic load C | = | 150 kN |
| Static load Co | = | 156 kN |
| Fatigue load limit Pu | = | 20.4 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 6000 rpm |
| Weight | = | 1.35 kg |
| Cage options | = | M.ML |
| d1 | = | 94.3mm |
| D1 | = | 114mm |
| F, E | = | 88.5mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| da min | = | 84mm |
| db min | = | 97mm |
| Da max | = | 121mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.15 |
