• NUP217 Budget Single Row Cylindrical Roller Bearing 85x150x28mm
1 1

SKU: NUP217-EU

NUP217 Budget Single Row Cylindrical Roller Bearing 85x150x28mm

NUP217 Budget Single Row Cylindrical Roller Bearing 85x150x28mm
$150.16 ex VAT
$150.16 ex VAT
Sale Sold out

In stock

Price Break
10+ $100.58
19+ $94.93
29+ $93.80
39+ $92.67
49+ $91.54
74+ $90.41
99+ $84.76
199+ $83.63
249+ $82.50
499+ $81.37
999+ $79.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

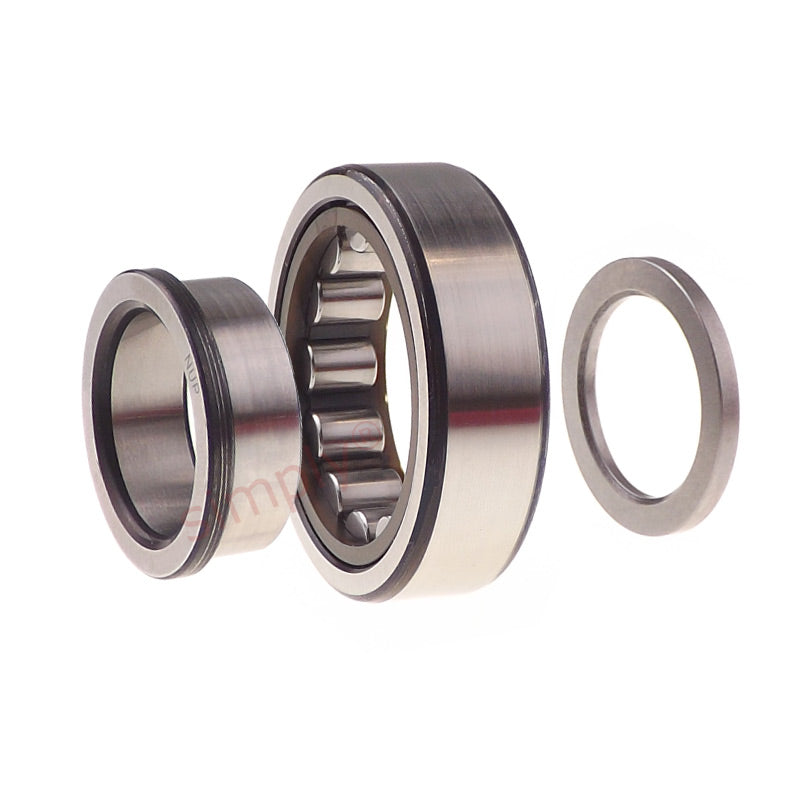

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
85mm
Outside Diameter:
150mm
Width:
28mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 85mm
D 150mm
B 28mm
Dynamic load C 190 kN
Static load Co 200 kN
Fatigue load limit Pu 24.5 kN
Reference speed 4800 rpm
Limiting speed 5300 rpm
Weight 2 kg
Cage options J.ML
d1 107mm
D1 131mm
F, E 100.5mm
r1r2 min 2mm
r3r4 min 2mm
da min 96mm
db min 110mm
Da max 139mm
ra max 2mm
rb max 2mm
kr 0.15
