• NUP2203 Budget Single Row Cylindrical Roller Bearing 17x40x16mm
1 1

SKU: NUP2203-EU

NUP2203 Budget Single Row Cylindrical Roller Bearing 17x40x16mm

NUP2203 Budget Single Row Cylindrical Roller Bearing 17x40x16mm
$30.91 ex VAT
$30.91 ex VAT
Sale Sold out

In stock

Price Break
10+ $20.70
19+ $19.54
29+ $19.31
39+ $19.07
49+ $18.84
74+ $18.61
99+ $17.45
199+ $17.21
249+ $16.98
499+ $16.75
999+ $16.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

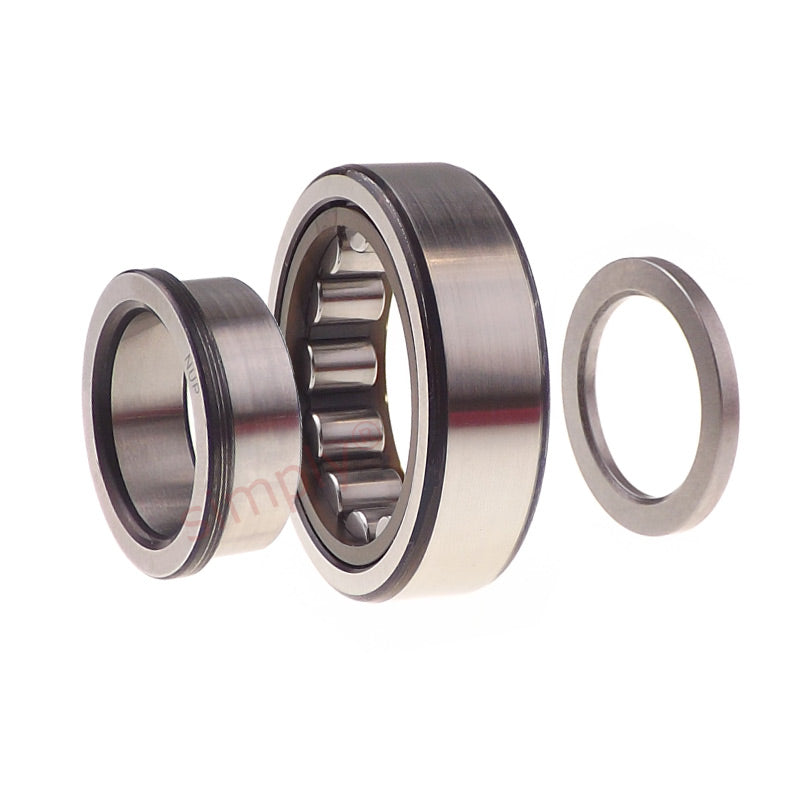

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
17mm
Outside Diameter:
40mm
Width:
16mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 17mm
D 40mm
B 16mm
Dynamic load C 23.8 kN
Static load Co 21.6 kN
Fatigue load limit Pu 2.65 kN
Reference speed 19000 rpm
Limiting speed 22000 rpm
Weight 0.097 kg
d1 25mm
D1 32.4mm
F, E 22.1mm
r1r2 min 0.6mm
r3r4 min 0.3mm
da min 21.2mm
db min 27mm
Da max 35.8mm
ra max 0.6mm
rb max 0.3mm
kr 0.2
