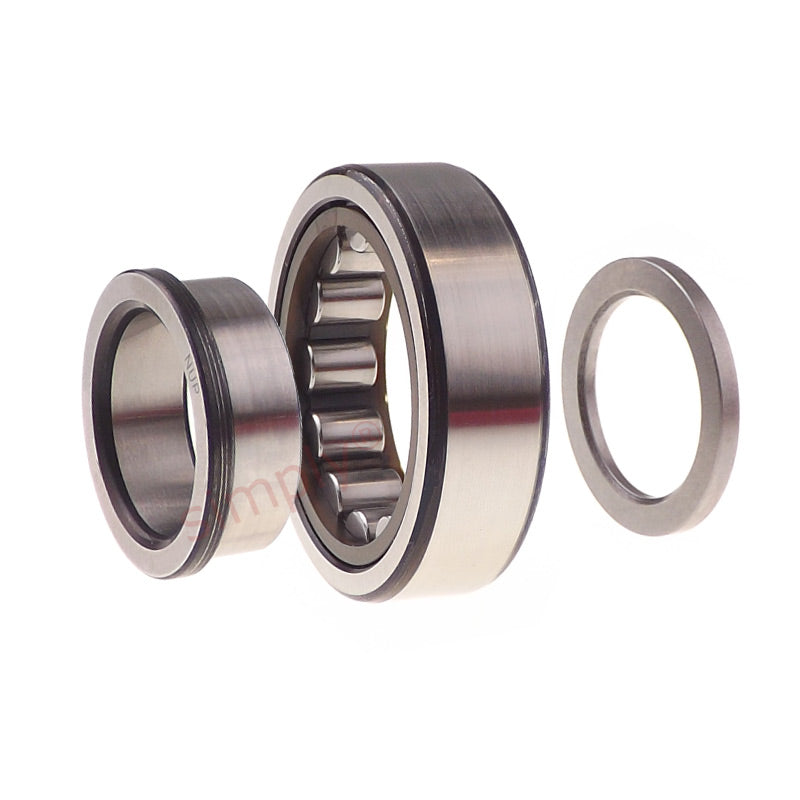

• NUP2306 Budget Single Row Cylindrical Roller Bearing 30x72x27mm
1 1

SKU: NUP2306-EU

NUP2306 Budget Single Row Cylindrical Roller Bearing 30x72x27mm

NUP2306 Budget Single Row Cylindrical Roller Bearing 30x72x27mm
$70.94 ex VAT
$70.94 ex VAT
Sale Sold out

In stock

Price Break
10+ $47.52
19+ $44.85
29+ $44.31
39+ $43.78
49+ $43.25
74+ $42.71
99+ $40.04
199+ $39.51
249+ $38.97
499+ $38.44
999+ $37.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions.
Benefits: Axial location, ease of assembly and fitting
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
30mm
Outside Diameter:
72mm
Width:
27mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 30mm
D 72mm
B 27mm
Dynamic load C 83 kN
Static load Co 75 kN
Fatigue load limit Pu 9.65 kN
Reference speed 11000 rpm
Limiting speed 12000 rpm
Weight 0.55 kg
Cage options ML
d1 45mm
D1 58.9mm
F, E 40.5mm
r1r2 min 1.1mm
r3r4 min 1.1mm
da min 37mm
db min 47mm
Da max 65mm
ra max 1mm
rb max 1mm
kr 0.25
