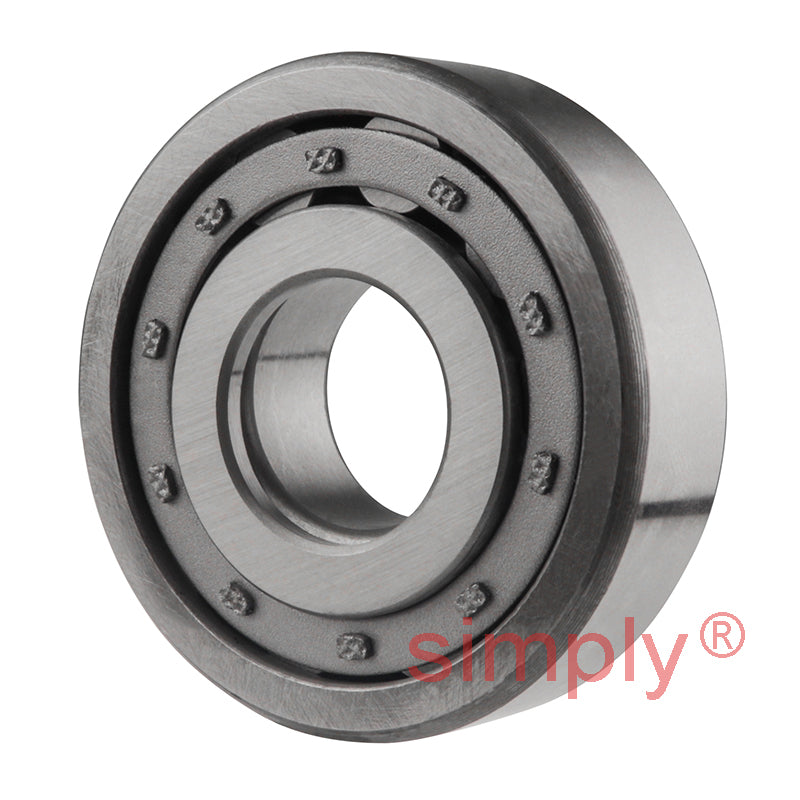

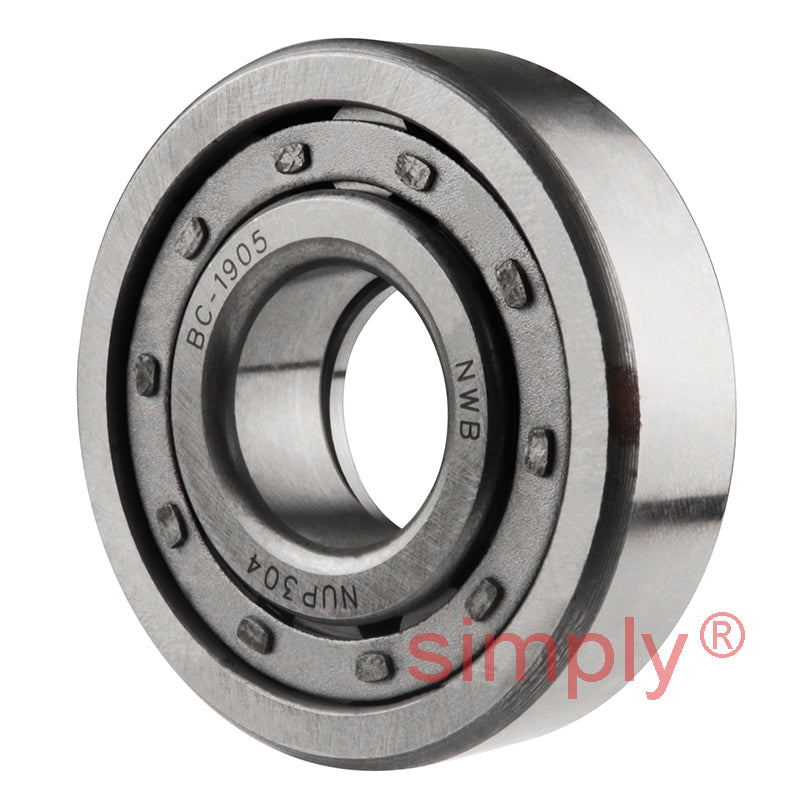

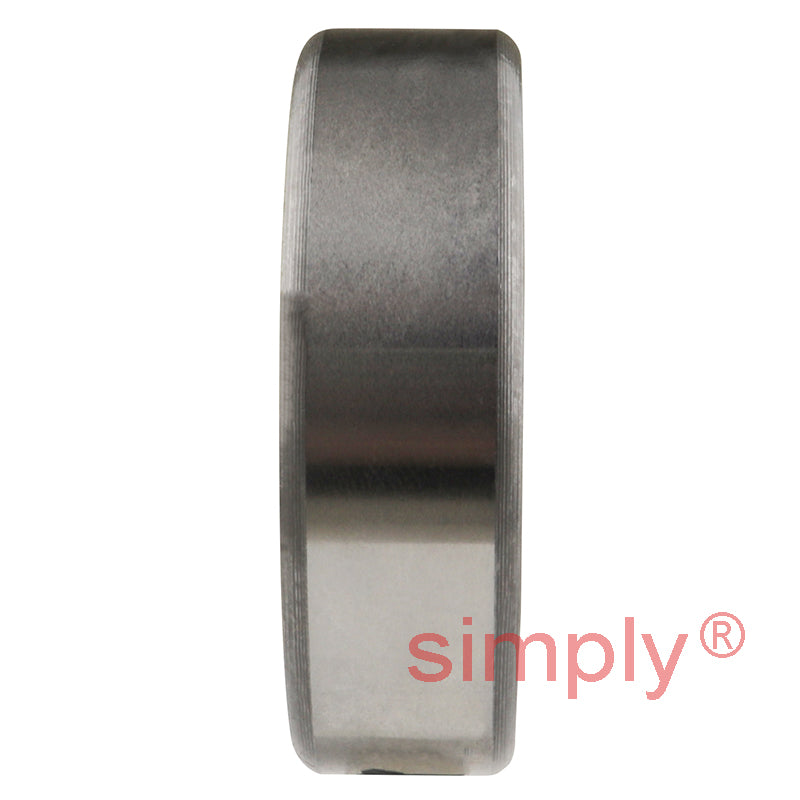

• NUP304 Budget Single Row Cylindrical Roller Bearing 20x52x15mm
  • NUP304 Budget Single Row Cylindrical Roller Bearing 20x52x15mm
  • NUP304 Budget Single Row Cylindrical Roller Bearing 20x52x15mm
1 3

SKU: NUP304-EU

NUP304 Budget Single Row Cylindrical Roller Bearing 20x52x15mm

NUP304 Budget Single Row Cylindrical Roller Bearing 20x52x15mm
$32.79 ex VAT
$32.79 ex VAT
Sale Sold out

In stock

Price Break
10+ $21.96
19+ $20.73
29+ $20.48
39+ $20.23
49+ $19.99
74+ $19.74
99+ $18.51
199+ $18.26
249+ $18.01
499+ $17.77
999+ $17.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
20mm
Outside Diameter:
52mm
Width:
15mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 20mm
D 52mm
B 15mm
Dynamic load C 35.5 kN
Static load Co 26 kN
Fatigue load limit Pu 3.25 kN
Reference speed 15000 rpm
Limiting speed 18000 rpm
Weight 0.16 kg
d1 31.2mm
D1 42.4mm
F, E 27.5mm
r1r2 min 1.1mm
r3r4 min 0.6mm
da min 27mm
db min 33mm
Da max 45mm
ra max 1mm
rb max 0.6mm
kr 0.15
