SKU: NUP316-EU

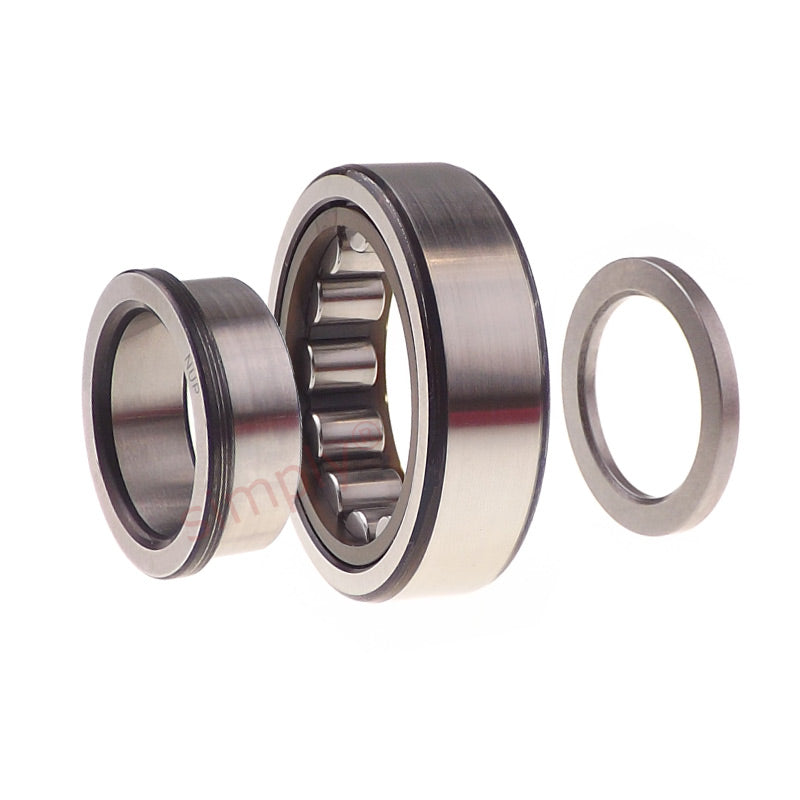

NUP316 Budget Single Row Cylindrical Roller Bearing 80x170x39mm

Name: NUP316 Budget Single Row Cylindrical Roller Bearing 80x170x39mm
Brand: Gen
SKU: NUP316-EU
Price: 237.78 USD
Availability: InStock

$237.78 ex VAT

Sale Sold out

In stock

Price Break

10+ $159.28

19+ $150.33

29+ $148.54

39+ $146.75

49+ $144.96

74+ $143.17

99+ $134.22

199+ $132.43

249+ $130.64

499+ $128.85

999+ $125.27

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 80mm
Outside Diameter:: 170mm
Width:: 39mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	80mm
D	170mm
B	39mm
Dynamic load C	300 kN
Static load Co	290 kN
Fatigue load limit Pu	36 kN
Reference speed	4300 rpm
Limiting speed	5000 rpm
Weight	4.1 kg
Cage options	M.ML
d1	110mm
D1	144mm
F, E	101mm
r1r2 min	2.1mm
r3r4 min	2.1mm
da min	92mm
db min	113mm
Da max	158mm
ra max	2mm
rb max	2mm
kr	0.15
