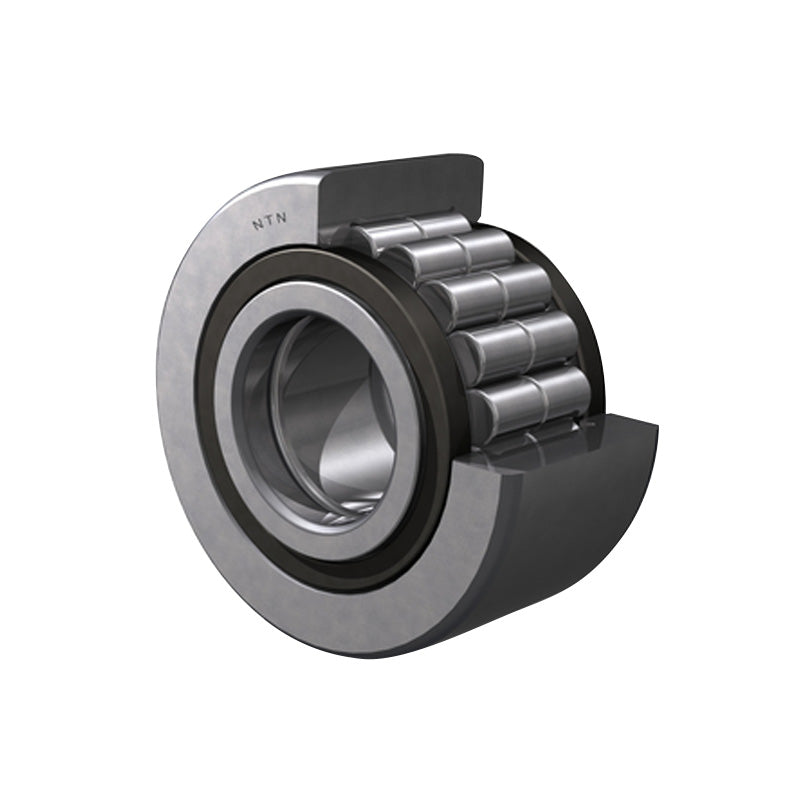

• NTN NUTR210/3AS Yoke Type Track Roller with Inner Race 50x90x30mm
  • NTN
1 2

SKU: NUTR210/3AS-NTN

NTN NUTR210/3AS Yoke Type Track Roller with Inner Race 50x90x30mm

NTN NUTR210/3AS Yoke Type Track Roller with Inner Race 50x90x30mm
$90.87 ex VAT
$90.87 ex VAT
Sale Sold out

In stock

Price Break
3+ $60.87
4+ $57.45
9+ $56.76
19+ $56.08
49+ $55.40
99+ $54.71
499+ $51.29
999+ $50.61
1999+ $49.92
2999+ $49.24
4999+ $47.87

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
30mm
Technical
d - Inside diameter 50mm
D - Outside diameter 90mm
C - Outer ring width 30mm
F - Under roller diameter 57mm
B - Bearing width 32mm
e - Inlet diameter 60mm
R - Track roller radius 500mm
rs - Minimum fillet radius 0.6mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 92 kN
C0r - Static load rating 137 kN
Track load capacity 10.4 kN
N - Grease lubrication limit speed 1800 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
