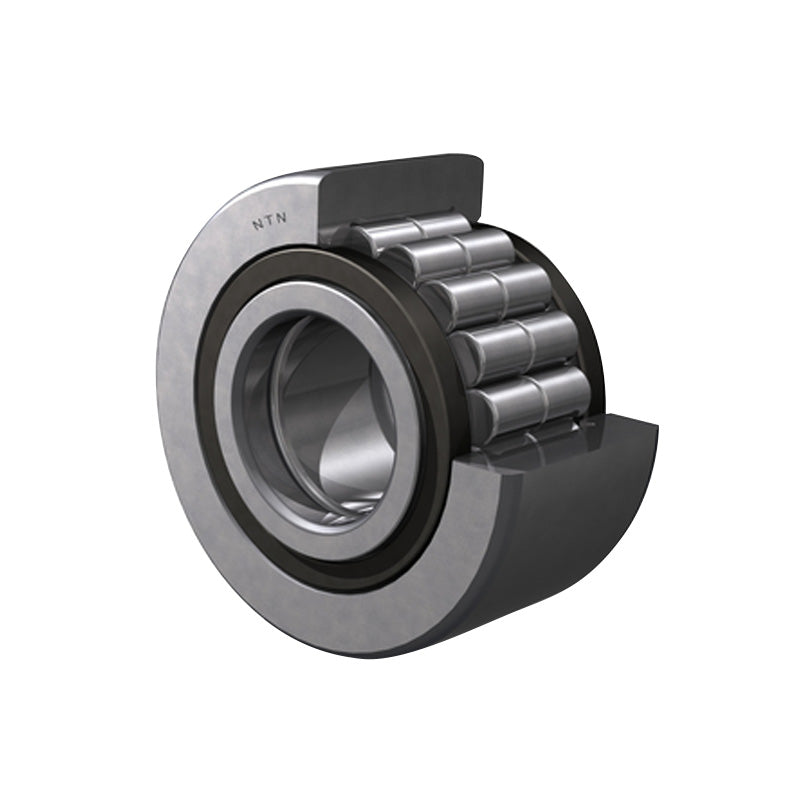

• NTN NUTR304/3AS Yoke Type Track Roller with Inner Race 20x52x24mm
  • NTN
1 2

SKU: NUTR304/3AS-NTN

NTN NUTR304/3AS Yoke Type Track Roller with Inner Race 20x52x24mm

NTN NUTR304/3AS Yoke Type Track Roller with Inner Race 20x52x24mm
$47.34 ex VAT
$47.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $31.71
4+ $29.93
9+ $29.57
19+ $29.22
49+ $28.86
99+ $28.50
499+ $26.72
999+ $26.37
1999+ $26.01
2999+ $25.65
4999+ $24.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
20mm
Outside Diameter:
52mm
Width:
24mm
Technical
d - Inside diameter 20mm
D - Outside diameter 52mm
C - Outer ring width 24mm
F - Under roller diameter 25.5mm
B - Bearing width 25mm
e - Inlet diameter 27mm
R - Track roller radius 500mm
rs - Minimum fillet radius 0.3mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 38.5 kN
C0r - Static load rating 48 kN
Track load capacity 5.55 kN
N - Grease lubrication limit speed 4000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
