• NTN NUTR308/3AS Yoke Type Track Roller with Inner Race 40x90x30mm
  • NTN
1 2

SKU: NUTR308/3AS-NTN

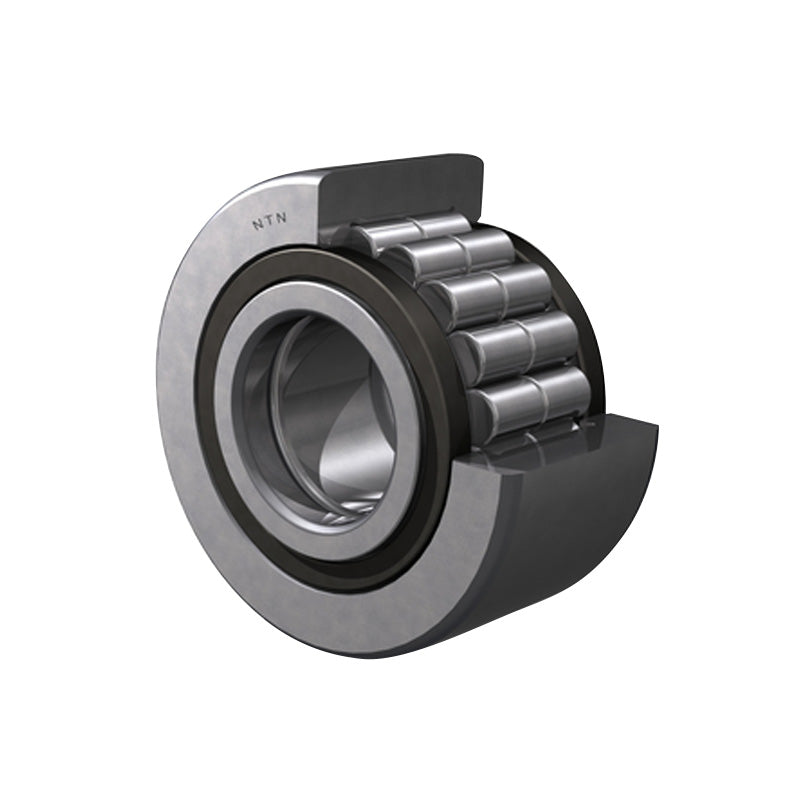

NTN NUTR308/3AS Yoke Type Track Roller with Inner Race 40x90x30mm

NTN NUTR308/3AS Yoke Type Track Roller with Inner Race 40x90x30mm
$82.23 ex VAT
$82.23 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.08
4+ $51.99
9+ $51.37
19+ $50.75
49+ $50.13
99+ $49.51
499+ $46.42
999+ $45.80
1999+ $45.18
2999+ $44.56
4999+ $43.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
40mm
Outside Diameter:
90mm
Width:
30mm
Technical
d - Inside diameter 40mm
D - Outside diameter 90mm
C - Outer ring width 30mm
F - Under roller diameter 47.5mm
B - Bearing width 32mm
e - Inlet diameter 51mm
R - Track roller radius 500mm
rs - Minimum fillet radius 0.6mm
Bearing with/without cage Without
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 96.5 kN
C0r - Static load rating 150 kN
Track load capacity 11.4 kN
N - Grease lubrication limit speed 2100 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
