SKU: NX10-MB

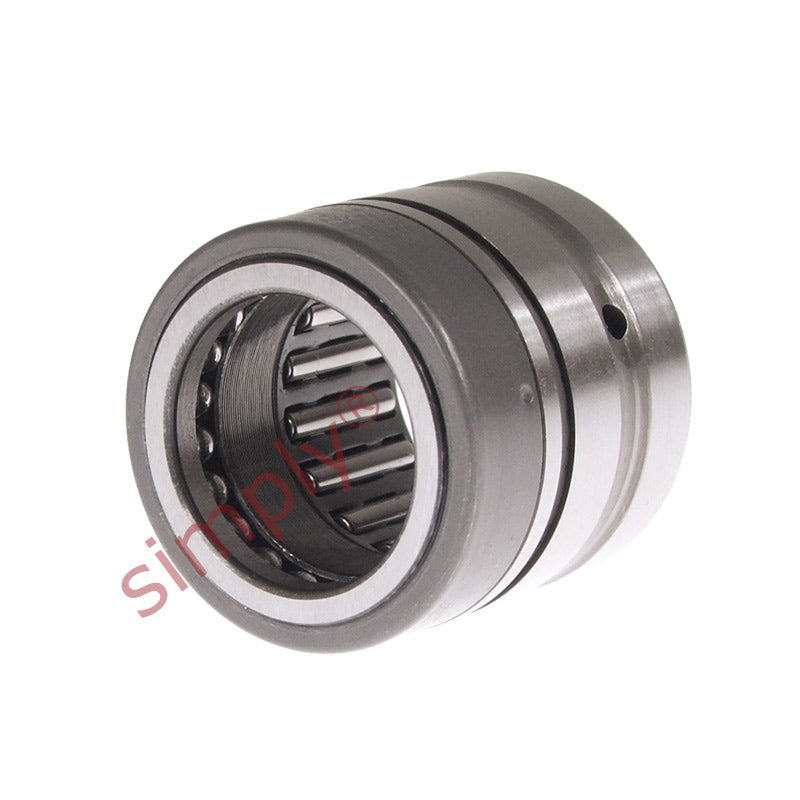

Major Brand NX10 Needle Roller / Full Complement Thrust Ball Bearing 10x19x18mm

Name: Major Brand NX10 Needle Roller / Full Complement Thrust Ball Bearing 10x19x18mm
Brand: Major Brand
SKU: NX10-MB
Price: 46.56 USD
Availability: InStock

$46.56 ex VAT

Sale Sold out

In stock

Price Break

10+ $31.18

19+ $29.43

29+ $29.08

39+ $28.73

49+ $28.38

74+ $28.03

99+ $26.28

199+ $25.93

249+ $25.58

499+ $25.23

999+ $24.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 10mm
Outside Diameter:: 19mm
Width:: 18mm

Technical

Fw	10mm
D	19mm
C	18mm
Dynamic load	4680 N
Static load	4150 N
Axial dynamic load	5070 N
Axial static load	8500 N
Fatigue load limit radial Pu	475 N
Fatigue load limit axial Pu	310 N
Min load factor A	0.38
Speed in oil	8500 rpm
C1	4.7mm
d	10mm
r1r2 min	0.3mm
da	14.5mm
Da max	17mm
Ca	10mm
ra max	0.3mm
di	6mm
F	10mm
Bi	10mm
Inner Ring	IR6x10x10
Retaining Ring	SW19
Weight	25 g
