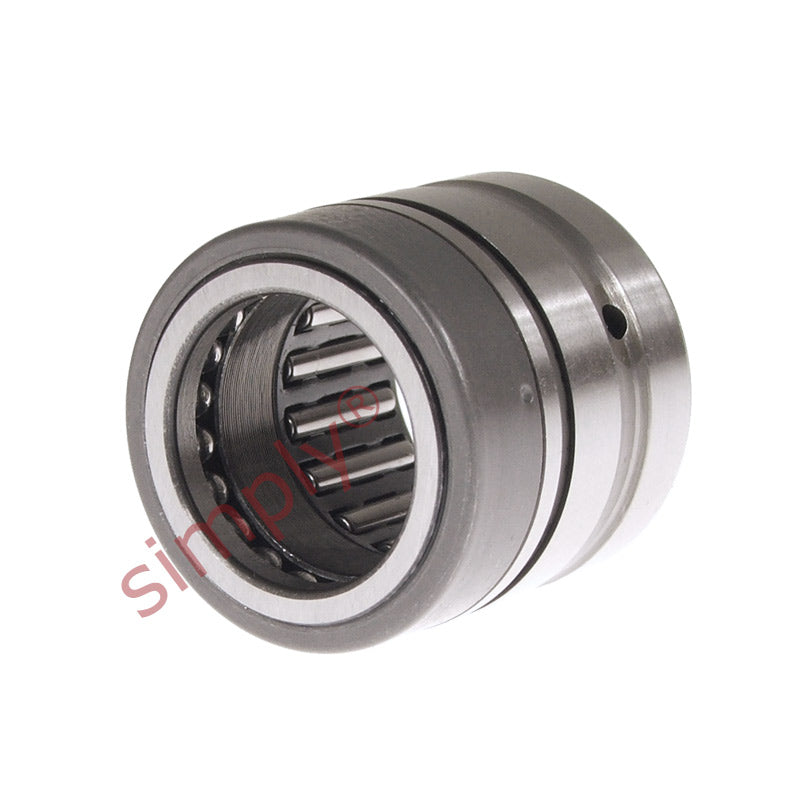

NX12 Budget Full Complement Needle Roller Thrust Ball Bearing 12x21x18mm

Name: NX12 Budget Full Complement Needle Roller Thrust Ball Bearing 12x21x18mm
Brand: Gen
SKU: NX12-EU
Price: 20.41 USD
Availability: InStock

$20.41 ex VAT

Sale Sold out

In stock

Price Break

10+ $13.67

19+ $12.90

29+ $12.75

39+ $12.59

49+ $12.44

74+ $12.29

99+ $11.52

199+ $11.37

249+ $11.21

499+ $11.06

999+ $10.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 21mm
Width:: 18mm

Technical

Fw	12mm
D	21mm
C	18mm
Dynamic load	5500 N
Static load	5400 N
Axial dynamic load	5270 N
Axial static load	9650 N
Radial fatigue load limit Pu	610 N
Axial fatigue load limit Pu	355 N
Min load factor A	0.48
Speed in oil	8000 rpm
C1	4.7mm
d	12mm
r1r2 min	0.3mm
da	16.5mm
Da max	19mm
Ca	10mm
ra max	0.3mm
di	8mm
F	12mm
Bi	10mm
Inner ring	IR8x12x10
Retaining ring	SW21
Weight	28 g
