SKU: NX15Z-EU

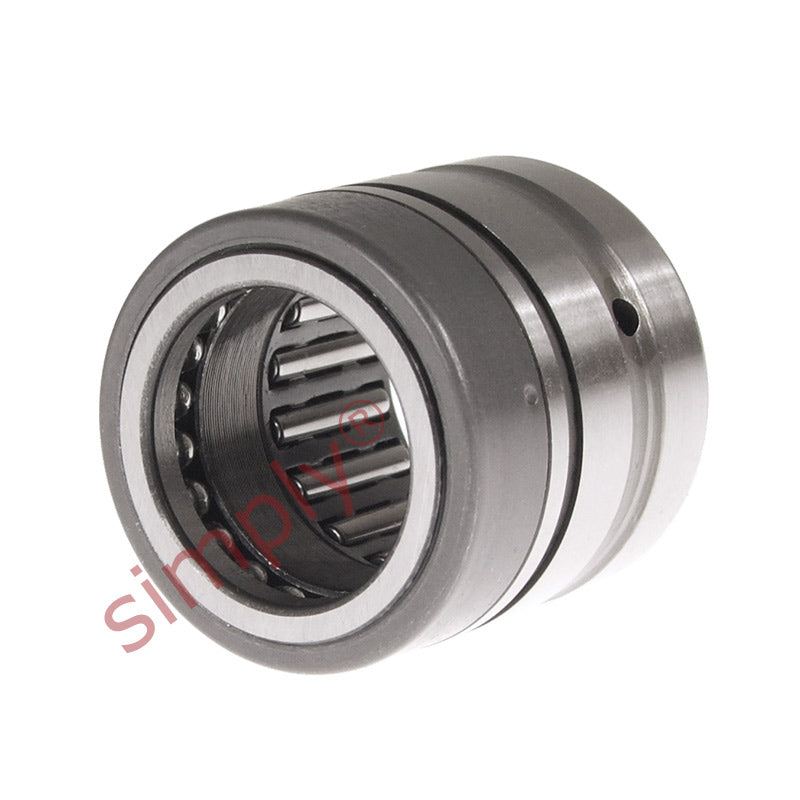

NX15Z Budget Full Complement Needle Roller Thrust Ball Bearing 15x24x28mm

Name: NX15Z Budget Full Complement Needle Roller Thrust Ball Bearing 15x24x28mm
Brand: Gen
SKU: NX15Z-EU
Price: 28.16 USD
Availability: InStock

$28.16 ex VAT

Sale Sold out

In stock

Price Break

10+ $18.86

19+ $17.80

29+ $17.59

39+ $17.38

49+ $17.17

74+ $16.96

99+ $15.90

199+ $15.68

249+ $15.47

499+ $15.26

999+ $14.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 15mm
Outside Diameter:: 24mm
Width:: 28mm
Seals / Shields:: Metal Shields

Technical

Fw	15mm
D	24mm
C	28mm
Dynamic load	11200 N
Static load	14000 N
Axial dynamic load	6180 N
Axial static load	12200 N
Radial fatigue load limit Pu	1660 N
Axial fatigue load limit Pu	450 N
Min load factor A	0.77
Speed in grease	5600 rpm
C1	8mm
d	15mm
r1r2 min	0.3mm
da	19mm
Da max	22mm
Ca	12.2mm
ra max	0.3mm
di	12mm
F	15mm
Bi	16mm
Inner ring	IR12x15x16
Retaining ring	SW24
Weight	48 g
