SKU: NX15Z-MB

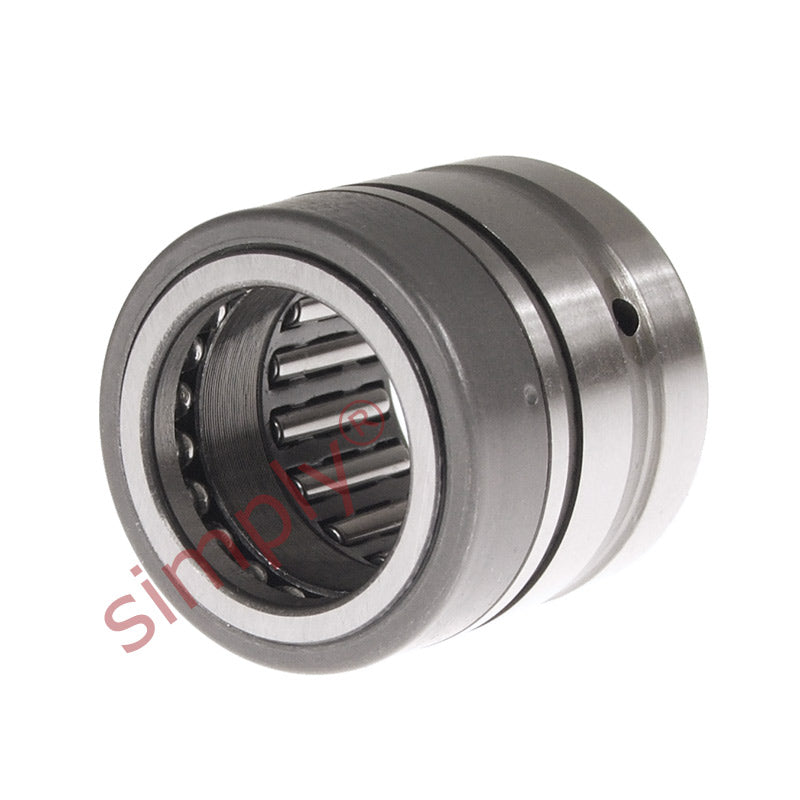

Major Brand NX15Z Needle Roller / Full Complement Thrust Ball Bearing 15x24x28mm

Name: Major Brand NX15Z Needle Roller / Full Complement Thrust Ball Bearing 15x24x28mm
Brand: Major Brand
SKU: NX15Z-MB
Price: 65.70 USD
Availability: InStock

$65.70 ex VAT

Sale Sold out

In stock

Price Break

10+ $44.01

19+ $41.54

29+ $41.05

39+ $40.55

49+ $40.06

74+ $39.56

99+ $37.09

199+ $36.60

249+ $36.10

499+ $35.61

999+ $34.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 15mm
Outside Diameter:: 24mm
Width:: 28mm

Technical

Fw	15mm
D	24mm
C	28mm
Dynamic load	11200 N
Static load	14000 N
Axial dynamic load	6180 N
Axial static load	12200 N
Fatigue load limit radial Pu	1660 N
Fatigue load limit axial Pu	450 N
Min load factor A	0.77
Speed in grease	5600 rpm
C1	8mm
d	15mm
r1r2 min	0.3mm
da	19mm
Da max	22mm
Ca	12.2mm
ra max	0.3mm
di	12mm
F	15mm
Bi	16mm
Inner Ring	IR12x15x16
Retaining Ring	SW24
Weight	48 g
