SKU: NX17Z-EU

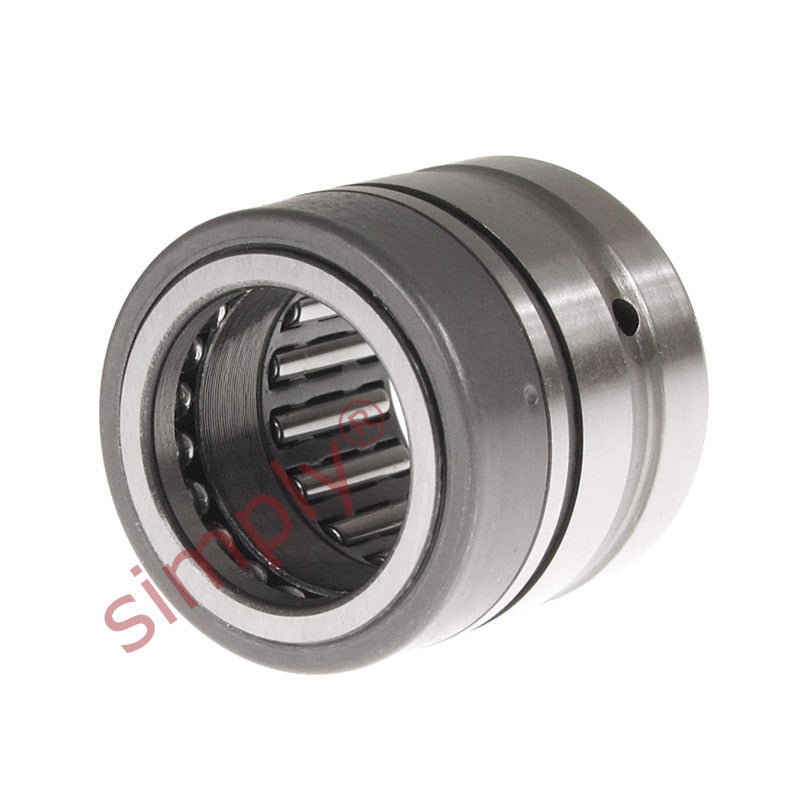

NX17Z Budget Full Complement Needle Roller Thrust Ball Bearing 17x26x28mm

Name: NX17Z Budget Full Complement Needle Roller Thrust Ball Bearing 17x26x28mm
Brand: Gen
SKU: NX17Z-EU
Price: 33.50 USD
Availability: InStock

$33.50 ex VAT

Sale Sold out

In stock

Price Break

10+ $22.43

19+ $21.17

29+ $20.92

39+ $20.67

49+ $20.42

74+ $20.16

99+ $18.90

199+ $18.65

249+ $18.40

499+ $18.15

999+ $17.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 17mm
Outside Diameter:: 26mm
Width:: 28mm
Seals / Shields:: Metal Shields

Technical

Fw	17mm
D	26mm
C	28mm
Dynamic load	12300 N
Static load	16600 N
Axial dynamic load	6370 N
Axial static load	13400 N
Radial fatigue load limit Pu	1960 N
Axial fatigue load limit Pu	500 N
Min load factor A	0.93
Speed in grease	5300 rpm
C1	8mm
d	17mm
r1r2 min	0.3mm
da	21mm
Da max	24mm
Ca	12.2mm
ra max	0.3mm
di	14mm
F	17mm
Bi	17mm
Inner ring	IR14x17x17
Retaining ring	SW26
Weight	53 g
