SKU: NX17Z-MB

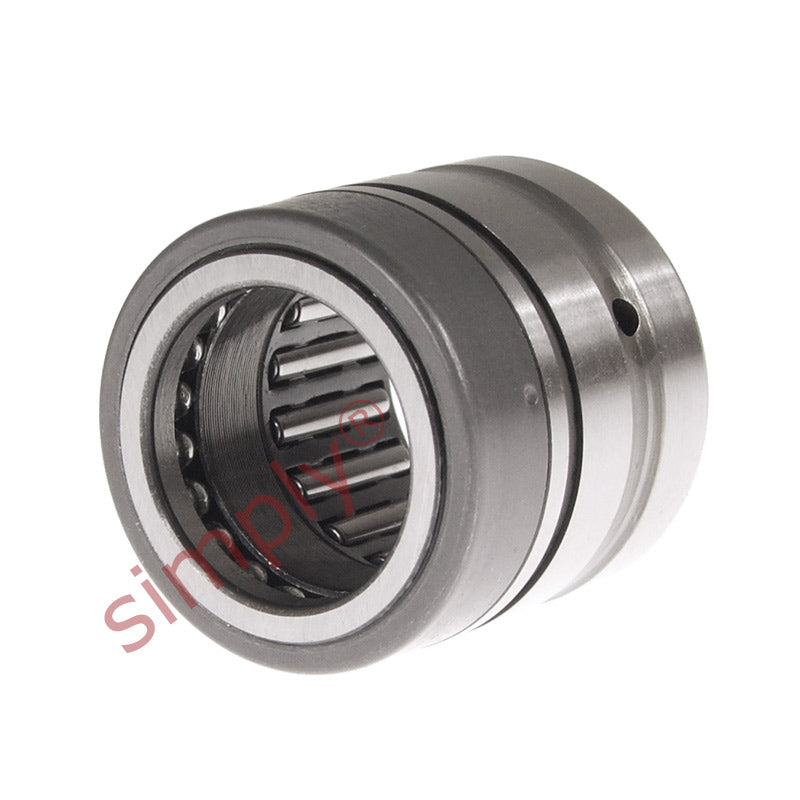

Major Brand NX17Z Needle Roller / Full Complement Thrust Ball Bearing 17x26x28mm

Name: Major Brand NX17Z Needle Roller / Full Complement Thrust Ball Bearing 17x26x28mm
Brand: Major Brand
SKU: NX17Z-MB
Price: 78.14 USD
Availability: InStock

$78.14 ex VAT

Sale Sold out

In stock

Price Break

10+ $52.34

19+ $49.40

29+ $48.82

39+ $48.23

49+ $47.64

74+ $47.05

99+ $44.11

199+ $43.52

249+ $42.93

499+ $42.35

999+ $41.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 17mm
Outside Diameter:: 26mm
Width:: 28mm

Technical

Fw	17mm
D	26mm
C	28mm
Dynamic load	12300 N
Static load	16600 N
Axial dynamic load	6370 N
Axial static load	13400 N
Fatigue load limit radial Pu	1960 N
Fatigue load limit axial Pu	500 N
Min load factor A	0.93
Speed in grease	5300 rpm
C1	8mm
d	17mm
r1r2 min	0.3mm
da	21mm
Da max	24mm
Ca	12.2mm
ra max	0.3mm
di	14mm
F	17mm
Bi	17mm
Inner Ring	IR14x17x17
Retaining Ring	SW26
Weight	53 g
