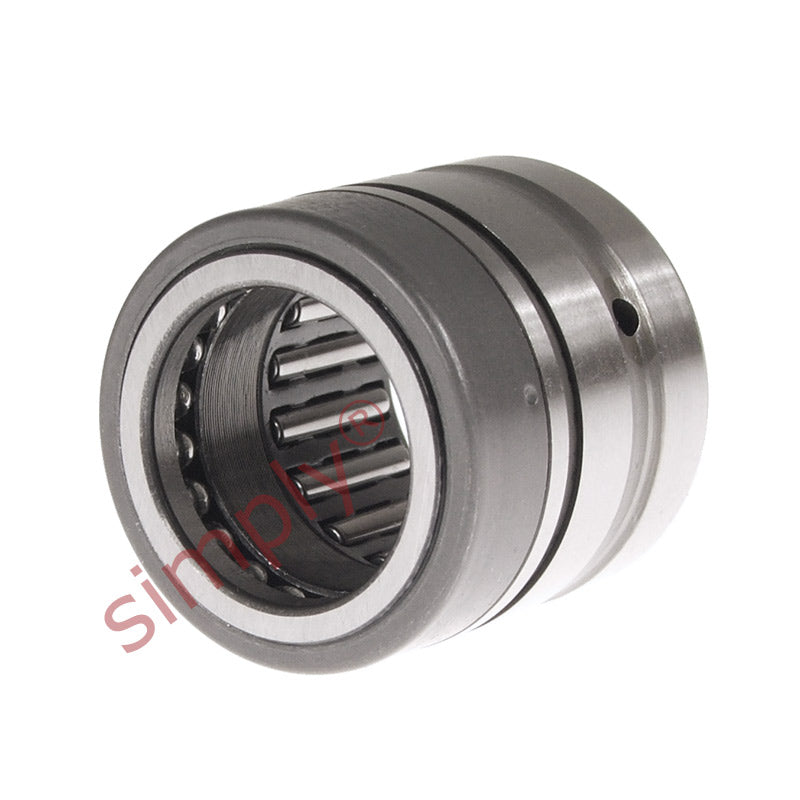

NX20Z Budget Full Complement Needle Roller Thrust Ball Bearing 20x30x28mm

Name: NX20Z Budget Full Complement Needle Roller Thrust Ball Bearing 20x30x28mm
Brand: Gen
SKU: NX20Z-EU
Price: 30.80 USD
Availability: InStock

$30.80 ex VAT

Sale Sold out

In stock

Price Break

10+ $20.63

19+ $19.47

29+ $19.24

39+ $19.01

49+ $18.78

74+ $18.55

99+ $17.39

199+ $17.15

249+ $16.92

499+ $16.69

999+ $16.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 20mm
Outside Diameter:: 30mm
Width:: 28mm
Seals / Shields:: Metal Shields

Technical

Fw	20mm
D	30mm
C	28mm
Dynamic load	13400 N
Static load	19600 N
Axial dynamic load	7800 N
Axial static load	17300 N
Radial fatigue load limit Pu	2280 N
Axial fatigue load limit Pu	640 N
Min load factor A	1.6
Speed in grease	4800 rpm
C1	8mm
d	20mm
r1r2 min	0.3mm
da	25mm
Da max	28mm
Ca	12.2mm
ra max	0.3mm
di	17mm
F	20mm
Bi	16mm
Inner ring	IR17x20x16
Retaining ring	SW30
Weight	68 g
