SKU: NX25-EU

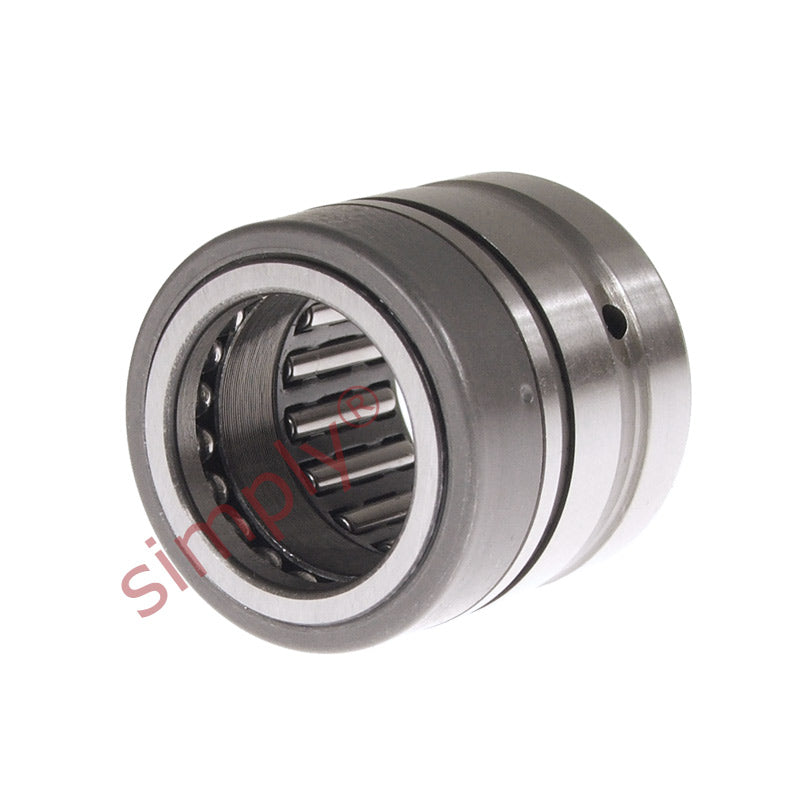

NX25 Budget Full Complement Needle Roller Thrust Ball Bearing 25x37x30mm

Name: NX25 Budget Full Complement Needle Roller Thrust Ball Bearing 25x37x30mm
Brand: Gen
SKU: NX25-EU
Price: 33.14 USD
Availability: InStock

$33.14 ex VAT

Sale Sold out

In stock

Price Break

10+ $22.20

19+ $20.95

29+ $20.70

39+ $20.45

49+ $20.20

74+ $19.96

99+ $18.71

199+ $18.46

249+ $18.21

499+ $17.96

999+ $17.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25mm
Outside Diameter:: 37mm
Width:: 30mm

Technical

Fw	25mm
D	37mm
C	30mm
Dynamic load	15400 N
Static load	25000 N
Axial dynamic load	12400 N
Axial static load	28500 N
Radial fatigue load limit Pu	2900 N
Axial fatigue load limit Pu	1060 N
Min load factor A	4.2
Speed in oil	5600 rpm
C1	8mm
d	25mm
r1r2 min	0.3mm
da	31.5mm
Da max	35mm
Ca	14.2mm
ra max	0.3mm
di	20mm
F	25mm
Bi	16mm
Inner ring	IR20x25x16
Retaining ring	SW37
Weight	120 g
