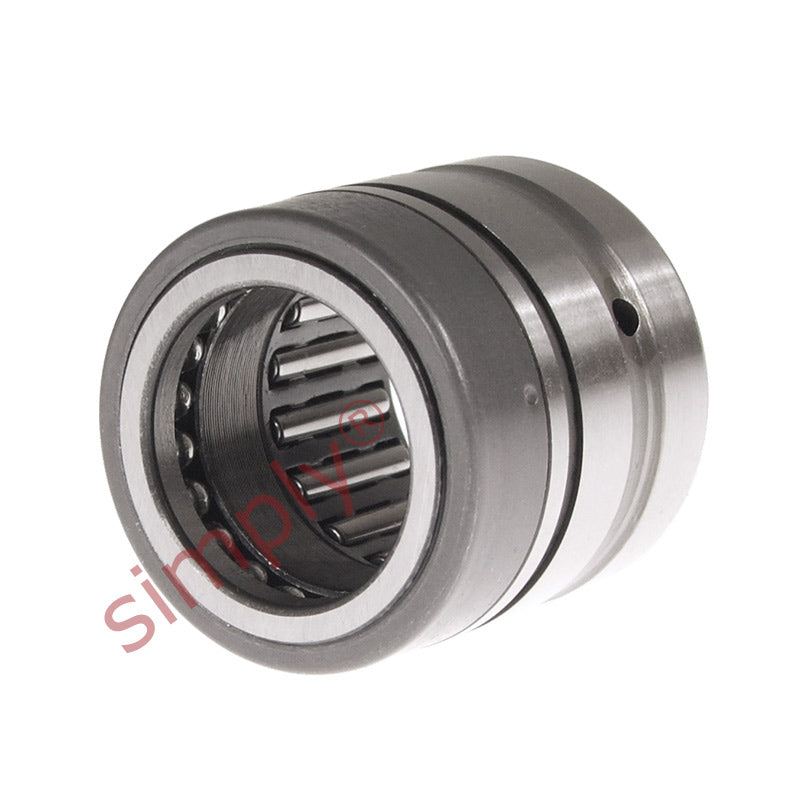

NX25Z Budget Full Complement Needle Roller Thrust Ball Bearing 25x37x30mm

Name: NX25Z Budget Full Complement Needle Roller Thrust Ball Bearing 25x37x30mm
Brand: Gen
SKU: NX25Z-EU
Price: 36.67 USD
Availability: InStock

$36.67 ex VAT

Sale Sold out

In stock

Price Break

10+ $24.57

19+ $23.19

29+ $22.91

39+ $22.63

49+ $22.36

74+ $22.08

99+ $20.70

199+ $20.43

249+ $20.15

499+ $19.87

999+ $19.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25mm
Outside Diameter:: 37mm
Width:: 30mm
Seals / Shields:: Metal Shields

Technical

Fw	25mm
D	37mm
C	30mm
Dynamic load	15400 N
Static load	25000 N
Axial dynamic load	12400 N
Axial static load	28500 N
Radial fatigue load limit Pu	2900 N
Axial fatigue load limit Pu	1060 N
Min load factor A	4.2
Speed in grease	4300 rpm
C1	8mm
d	25mm
r1r2 min	0.3mm
da	31.5mm
Da max	35mm
Ca	14.2mm
ra max	0.3mm
di	20mm
F	25mm
Bi	16mm
Inner ring	IR20x25x16
Retaining ring	SW37
Weight	120 g
