SKU: NX30-EU

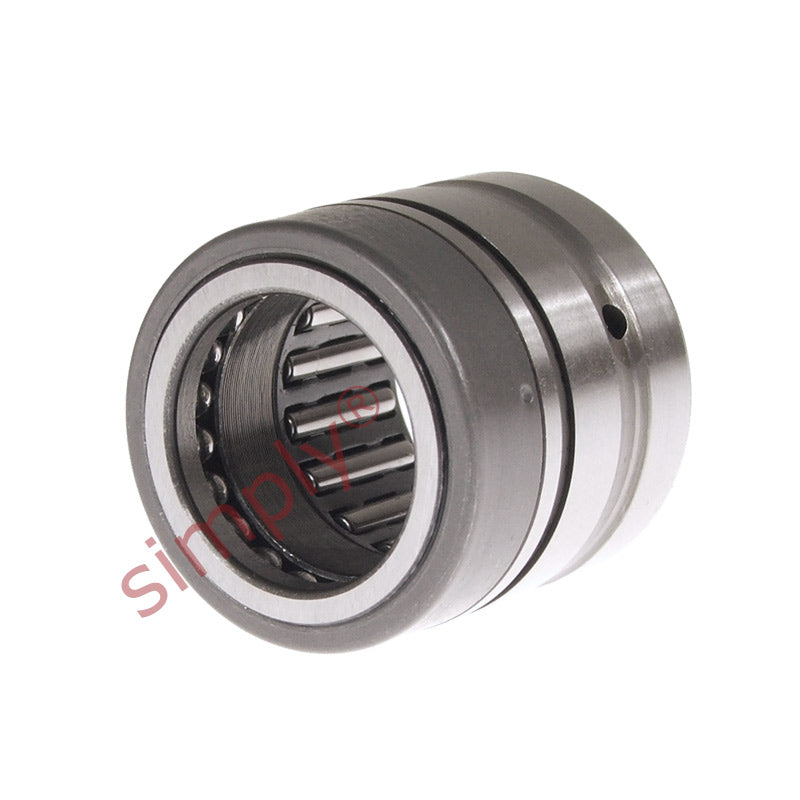

NX30 Budget Full Complement Needle Roller Thrust Ball Bearing 30x42x30mm

Name: NX30 Budget Full Complement Needle Roller Thrust Ball Bearing 30x42x30mm
Brand: Gen
SKU: NX30-EU
Price: 48.84 USD
Availability: InStock

$48.84 ex VAT

Sale Sold out

In stock

Price Break

10+ $32.72

19+ $30.88

29+ $30.51

39+ $30.14

49+ $29.78

74+ $29.41

99+ $27.57

199+ $27.20

249+ $26.83

499+ $26.47

999+ $25.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 30mm
Outside Diameter:: 42mm
Width:: 30mm

Technical

Fw	30mm
D	42mm
C	30mm
Dynamic load	22900 N
Static load	39000 N
Axial dynamic load	12700 N
Axial static load	32500 N
Radial fatigue load limit Pu	4800 N
Axial fatigue load limit Pu	1200 N
Min load factor A	5.5
Speed in oil	5300 rpm
C1	10mm
d	30mm
r1r2 min	0.3mm
da	36.5mm
Da max	40mm
Ca	14.2mm
ra max	0.3mm
di	25mm
F	30mm
Bi	20mm
Inner ring	IR25x30x20
Retaining ring	SW42
Weight	130 g
