SKU: NX35Z-MB

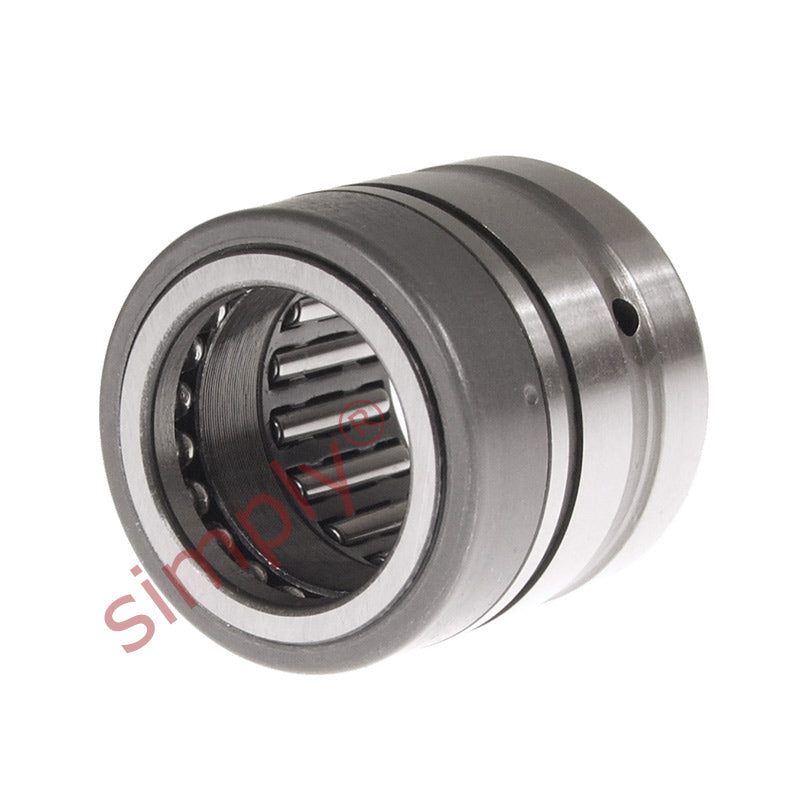

Major Brand NX35Z Needle Roller / Full Complement Thrust Ball Bearing 35x47x30mm

Name: Major Brand NX35Z Needle Roller / Full Complement Thrust Ball Bearing 35x47x30mm
Brand: Major Brand
SKU: NX35Z-MB
Price: 101.22 USD
Availability: InStock

$101.22 ex VAT

Sale Sold out

In stock

Price Break

10+ $67.80

19+ $63.99

29+ $63.23

39+ $62.46

49+ $61.70

74+ $60.94

99+ $57.13

199+ $56.37

249+ $55.61

499+ $54.85

999+ $53.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 35mm
Outside Diameter:: 47mm
Width:: 30mm

Technical

Fw	35mm
D	47mm
C	30mm
Dynamic load	24600 N
Static load	45000 N
Axial dynamic load	13500 N
Axial static load	38000 N
Fatigue load limit radial Pu	5600 N
Fatigue load limit axial Pu	1400 N
Min load factor A	7.5
Speed in grease	3800 rpm
C1	10mm
d	35mm
r1r2 min	0.3mm
da	40.5mm
Da max	45mm
Ca	14.2mm
ra max	0.3mm
di	30mm
F	35mm
Bi	20mm
Inner Ring	IR30x35x20
Retaining Ring	SW47
Weight	160 g
