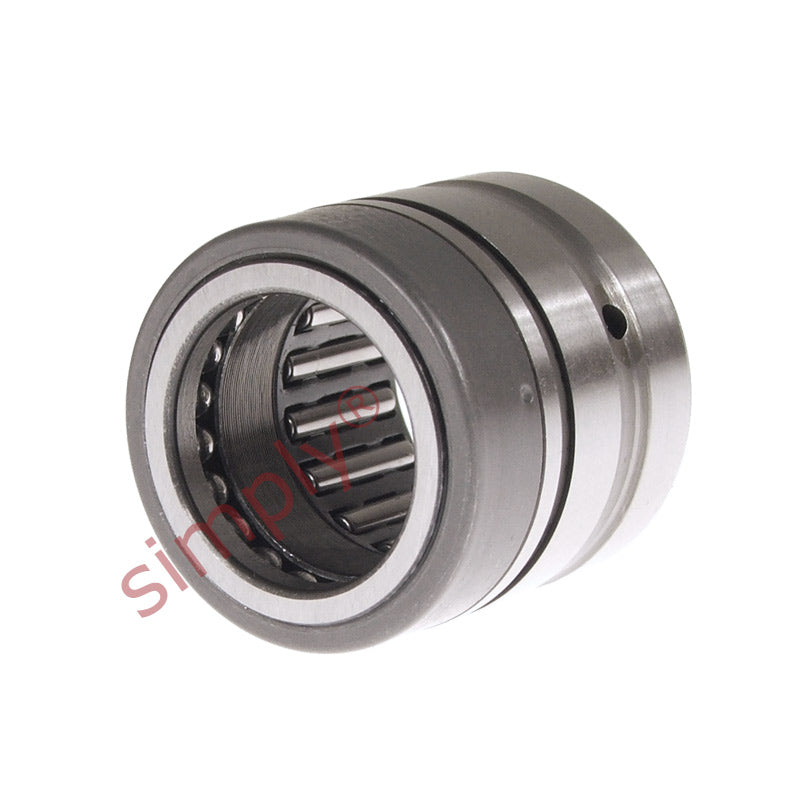

• NX7TN Budget Full Comp Needle / Ball Thrust Bearing / Closure Ring 7x14x18mm
1 1

SKU: NX7TN-EU

NX7TN Budget Full Comp Needle / Ball Thrust Bearing / Closure Ring 7x14x18mm

NX7TN Budget Full Comp Needle / Ball Thrust Bearing / Closure Ring 7x14x18mm
$22.10 ex VAT
$22.10 ex VAT
Sale Sold out

In stock

Price Break
10+ $14.80
19+ $13.97
29+ $13.80
39+ $13.64
49+ $13.47
74+ $13.30
99+ $12.47
199+ $12.31
249+ $12.14
499+ $11.97
999+ $11.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
7mm
Outside Diameter:
14mm
Width:
18mm
Technical
Fw 7mm
D 14mm
C 18mm
Dynamic load 2810 N
Static load 2750 N
Axial dynamic load 3450 N
Axial static load 5000 N
Radial fatigue load limit Pu 290 N
Axial fatigue load limit Pu 186 N
Min load factor A 0.13
Speed in oil 10000 rpm
C1 4.7mm
d 7mm
r1r2 min 0.3mm
da 9.5mm
Da max 12mm
Ca 10mm
ra max 0.3mm
Retaining ring SW14
Weight 14 g
