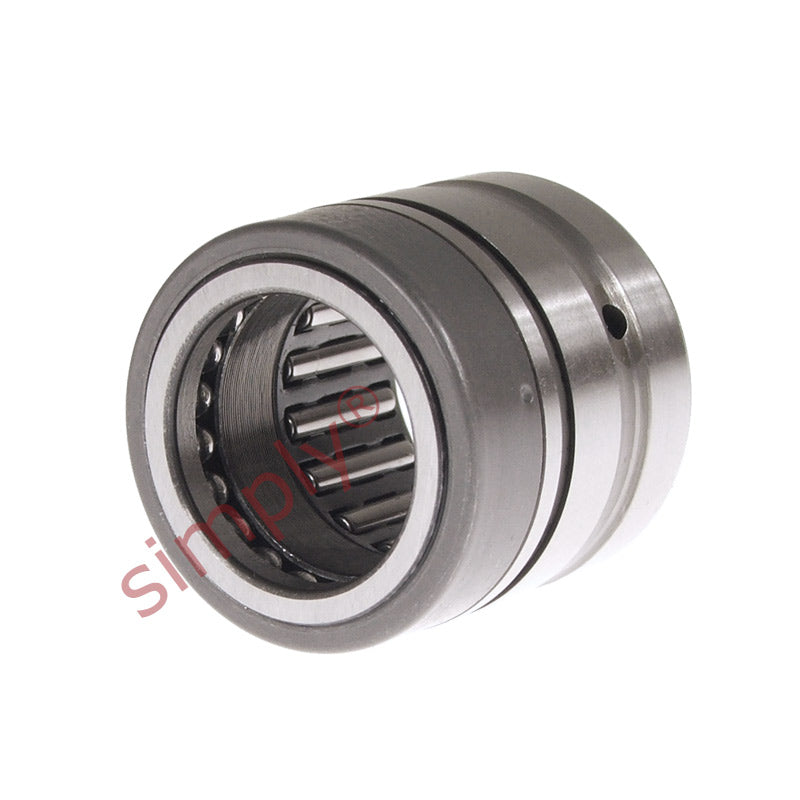

• Major Brand NX7TN Needle Roller / Full Complement Thrust Ball Bearing with Closure Ring 7x14x18mm
1 1

SKU: NX7TN-MB

Major Brand NX7TN Needle Roller / Full Complement Thrust Ball Bearing with Closure Ring 7x14x18mm

Major Brand NX7TN Needle Roller / Full Complement Thrust Ball Bearing with Closure Ring 7x14x18mm
$51.55 ex VAT
$51.55 ex VAT
Sale Sold out

In stock

Price Break
10+ $34.53
19+ $32.59
29+ $32.20
39+ $31.82
49+ $31.43
74+ $31.04
99+ $29.10
199+ $28.71
249+ $28.32
499+ $27.94
999+ $27.16

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
7mm
Outside Diameter:
14mm
Width:
18mm
Technical
Fw 7mm
D 14mm
C 18mm
Dynamic load 2810 N
Static load 2750 N
Axial dynamic load 3450 N
Axial static load 5000 N
Fatigue load limit radial Pu 290 N
Fatigue load limit axial Pu 186 N
Min load factor A 0.13
Speed in oil 10000 rpm
C1 4.7mm
d 7mm
r1r2 min 0.3mm
da 9.5mm
Da max 12mm
Ca 10mm
ra max 0.3mm
Inner Ring -
Retaining Ring SW14
Weight 14 g
