SKU: P12TF-SKF

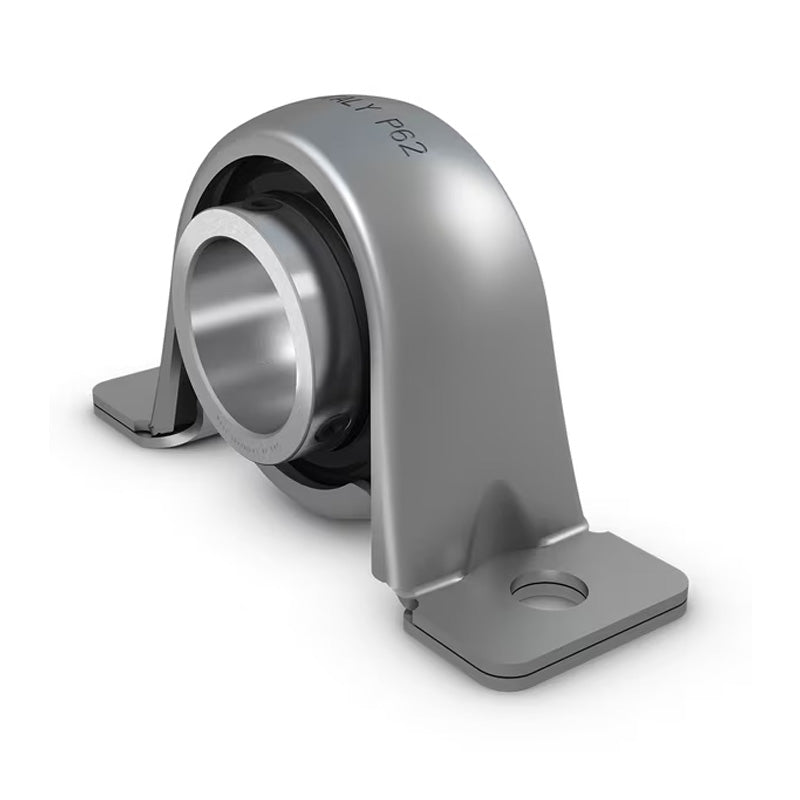

SKF P12TF Pressed Steel Plummer Block with Grub Screw Insert 12mm Bore - Allow 2-3 Days
SKF P12TF Pressed Steel Plummer Block with Grub Screw Insert 12mm Bore - Allow 2-3 Days
Regular price
$73.59
ex VAT
Regular price
Sale price
$73.59
ex VAT
In stock
Price Break
10+
$54.83
20+
$52.61
30+
$51.50
40+
$49.84
50+
$48.73
75+
$45.97
100+
$38.77
200+
$0.00
250+
$0.00
500+
$0.00
1000+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
| SKF Y-bearing Plummer Block Units with a Pressed Steel Housing: These units are designed for simple applications with limited loads and speeds. The two-part housing, which has no provision for re-lubrication, is ordered separately from the insert bearing. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12mm
- Style:
- P
- Bolt Hole Centres:
- 68mm

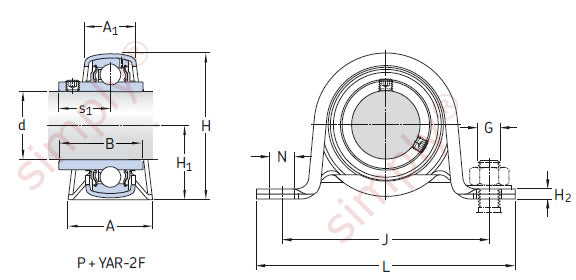

Technical
Technical
| d | 12mm |
|---|---|
| A | 26mm |
| A1 | 18mm |
| B | 27.4mm |
| H | 44mm |
| H1 | 22mm |
| H2 | 3mm |
| J | 68mm |
| L | 86mm |
| N | 9.6mm |
| G | 8mm |
| s1 | 15.9mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Permissible housing load radial | 1.25 kN |
| Weight | 0.18 kg |
| Housing | YAR203/12-2F |
| Insert | P40 |
