SKU: P14-L-050F

P14-L-050F - 3/8 inch Pitch 14 Tooth Flanged Pilot Bored Steel Timing Pulley for 1/2 inch Wide Belts

P14-L-050F - 3/8 inch Pitch 14 Tooth Flanged Pilot Bored Steel Timing Pulley for 1/2 inch Wide Belts
$12.82 ex VAT
$12.82 ex VAT
Sale Sold out

Equivalent to: P14L050F

In stock

Price Break
3+ $8.59
5+ $8.10
9+ $8.01
19+ $7.91
49+ $7.82
74+ $7.72
99+ $7.24
199+ $7.14
249+ $7.04
499+ $6.95
999+ $6.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
14
Material:
Steel
Belt Width Approx:
12.7mm = 0.5 (1/2) inch
Pitch:
9.53mm = 0.375 (3/8) inch
Item Type:
Flanged Pilot Bored Pulley

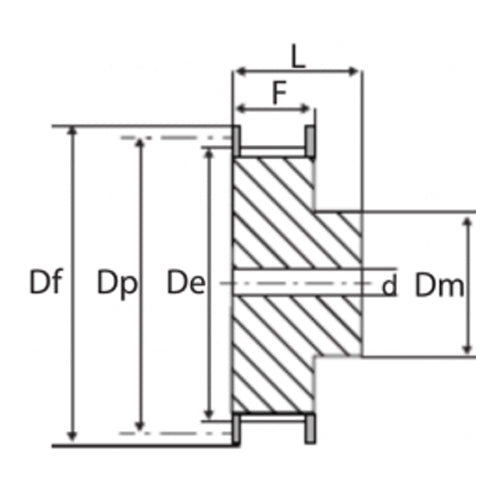

Technical
No. teeth 14
Dp 42.44mm
De 41.68mm
Df 48mm
Dm 28mm
F 19mm
L 30mm
d 8mm
No. flanges 2
Material Steel
Bore Pilot Bored
Belt Width 12.7mm = 0.5 (1/2) inch
Pitch 9.53mm = 0.375 (3/8) inch
