SKU: P17-XL-037F

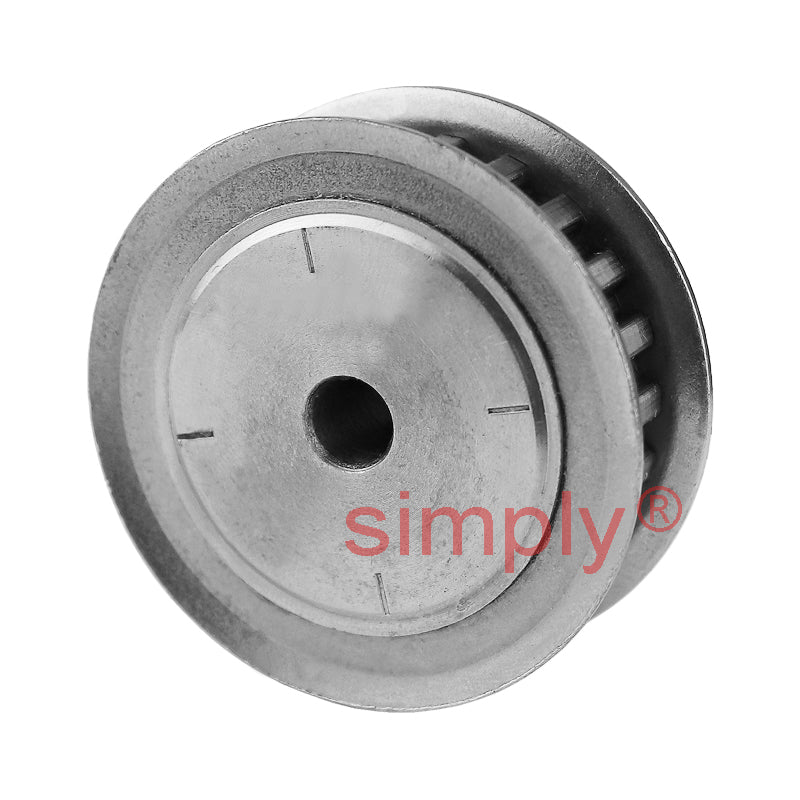

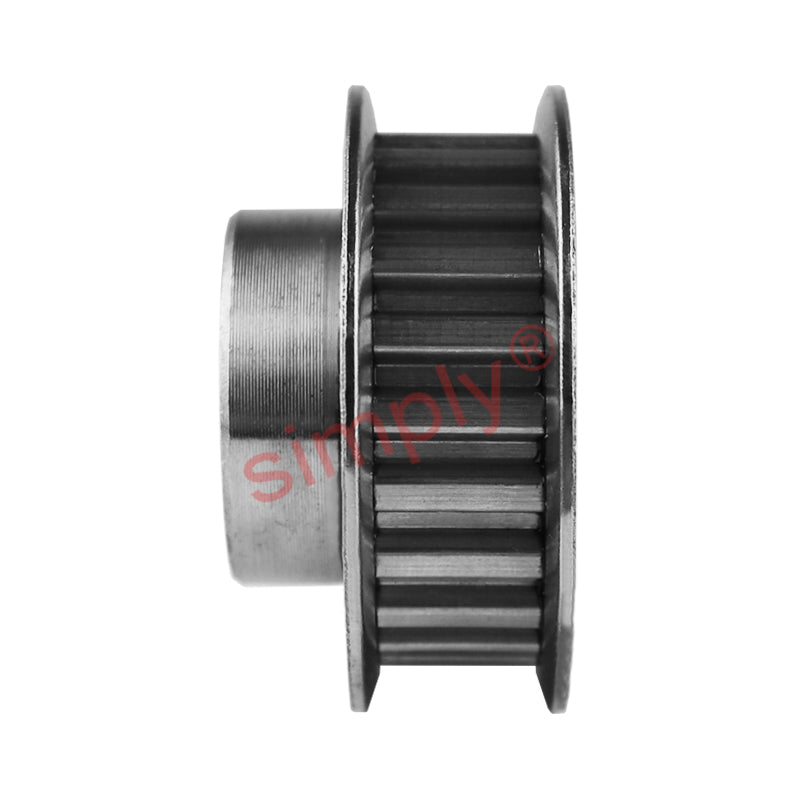

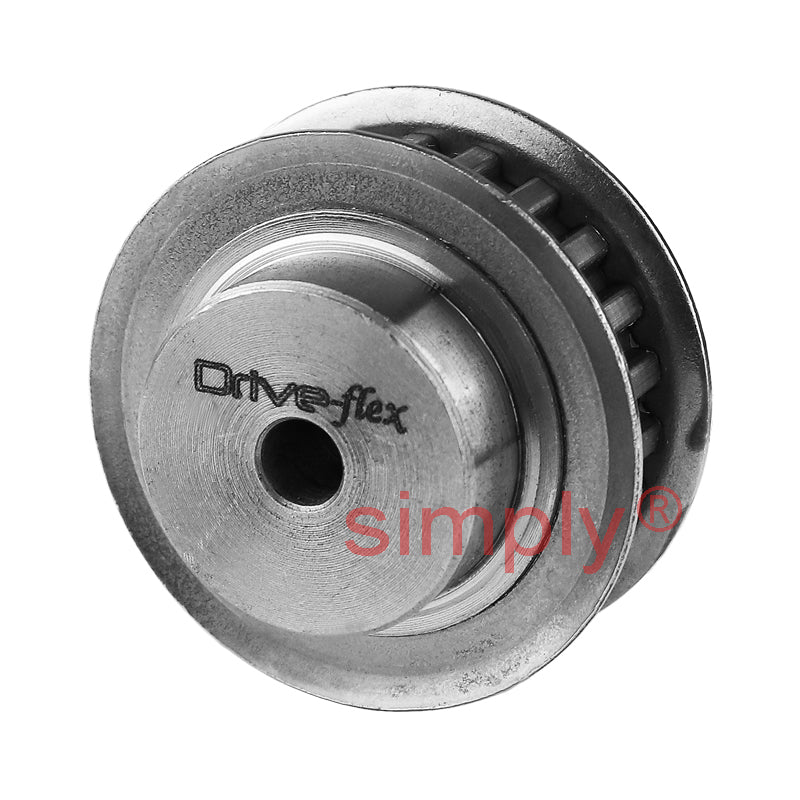

P17-XL-037F - 1/5 inch Pitch 17 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 3/8 inch Wide Belt

P17-XL-037F - 1/5 inch Pitch 17 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 3/8 inch Wide Belt
$13.95 ex VAT
$13.95 ex VAT
Sale Sold out

Equivalent to: P17XL037F

In stock

Price Break
3+ $9.35
5+ $8.82
9+ $8.72
19+ $8.61
49+ $8.51
74+ $8.40
99+ $7.88
199+ $7.77
249+ $7.67
499+ $7.56
999+ $7.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
17
Material:
Aluminium
Belt Width Approx:
9.53mm = 0.375 (3/8) inch
Pitch:
5.08mm = 0.2 (1/5) inch
Item Type:
Flanged Pilot Bored Pulley
Technical
No.teeth 17
Dp 27.49mm
De 26.98mm
Df 32mm
Dm 20mm
Fw 14.3mm
L 20mm
No. Flanges 2
Material Aluminium
Bore Pilot Bored
Belt Width 9.53mm = 0.375 (3/8) inch
Pitch 5.08mm = 0.2 (1/5) inch
