SKU: P20-MXL-025FB

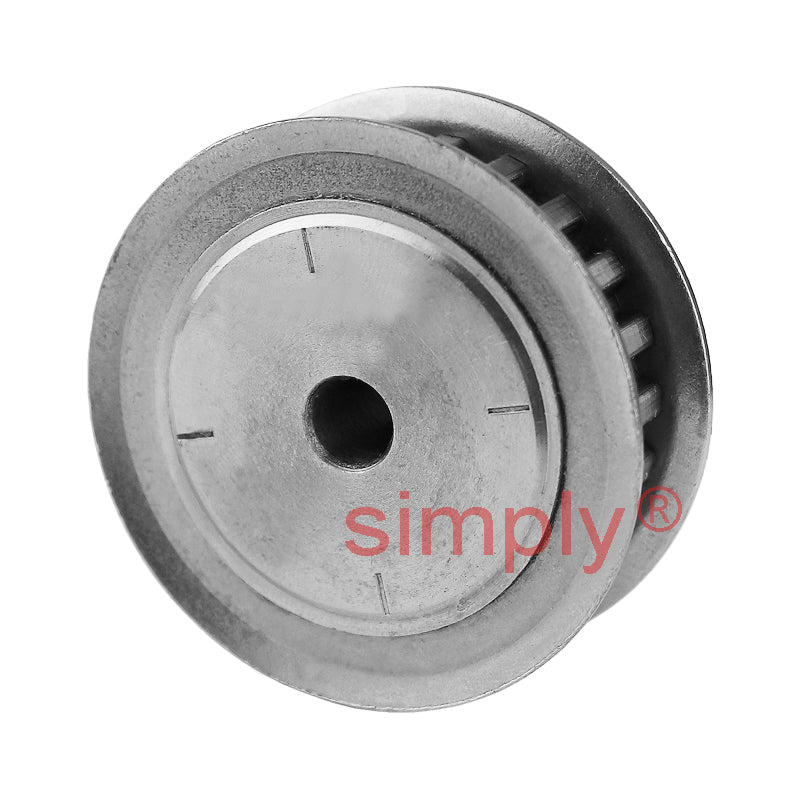

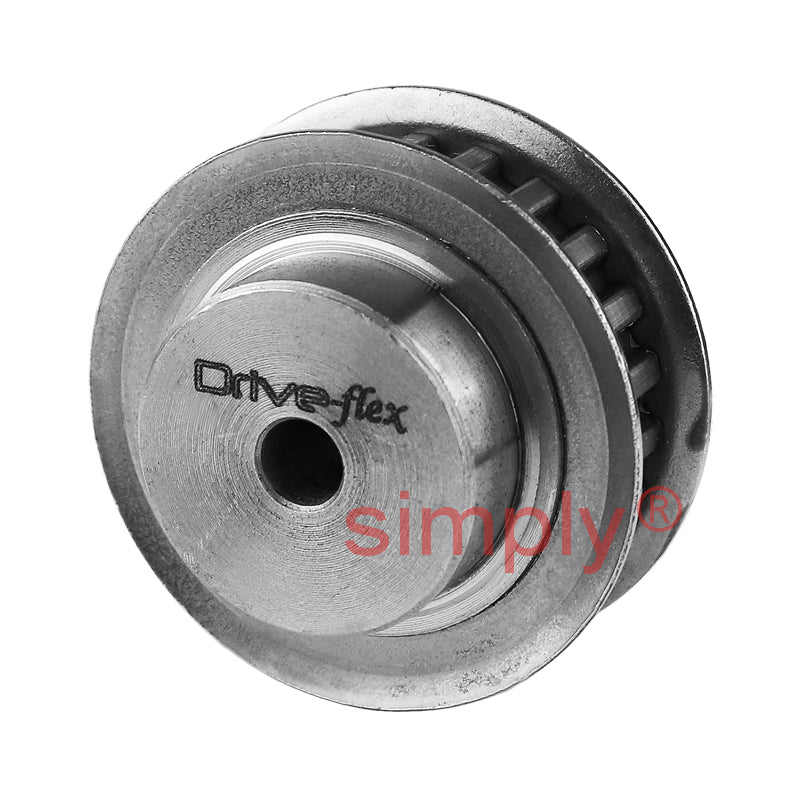

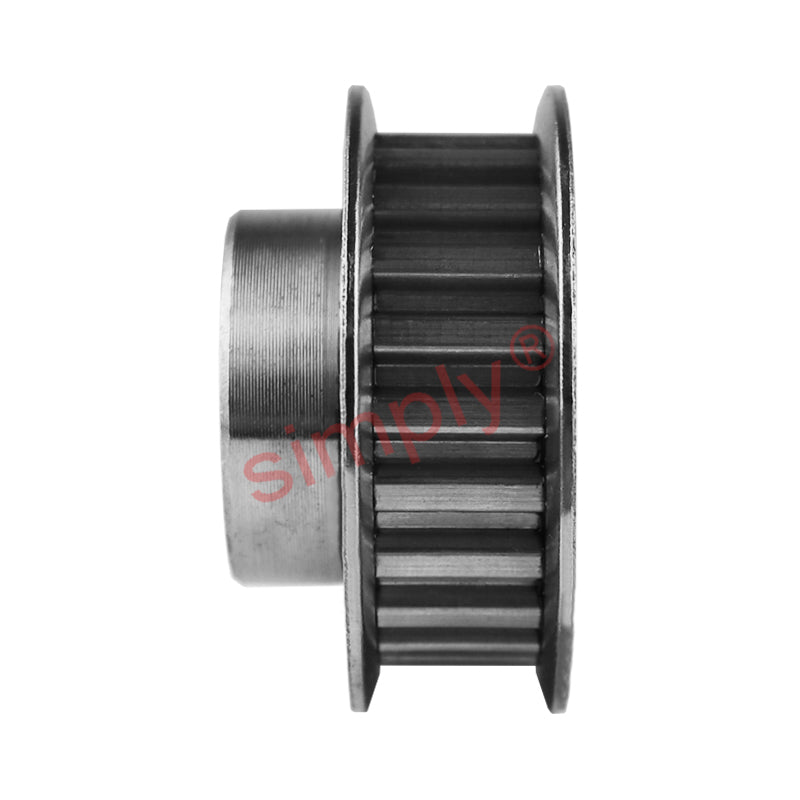

P20-MXL-025FB - 0.08 inch Pitch 20 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt

Name: P20-MXL-025FB - 0.08 inch Pitch 20 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt
Brand: Drive-Flex
SKU: P20-MXL-025FB
Price: 20.24 USD
Availability: InStock

$20.24 ex VAT

Sale Sold out

Equivalent to: P20MXL025FB

In stock

Price Break

3+ $13.55

5+ $12.79

9+ $12.64

19+ $12.49

49+ $12.34

74+ $12.18

99+ $11.42

199+ $11.27

249+ $11.12

499+ $10.97

999+ $10.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Teeth:: 20
Material:: Aluminium
Belt Width Approx:: 6.35mm = 0.25 (1/4) inch
Pitch:: 2.03mm = 0.08 inch
Item Type:: Flanged Pilot Bored Pulley

Technical

No.teeth	20
Dp	12.94mm
De	12.43mm
Df	16mm
Dm	16mm
Fw	7mm
L	16mm
Bore (d)	3mm
No. Flanges	2
Gs	M2.5
Material	Aluminium
Bore	Pilot Bored
Belt Width	6.35mm = 0.25 (1/4) inch
Pitch	2.03mm = 0.08 inch
