SKU: P22-MXL-025F

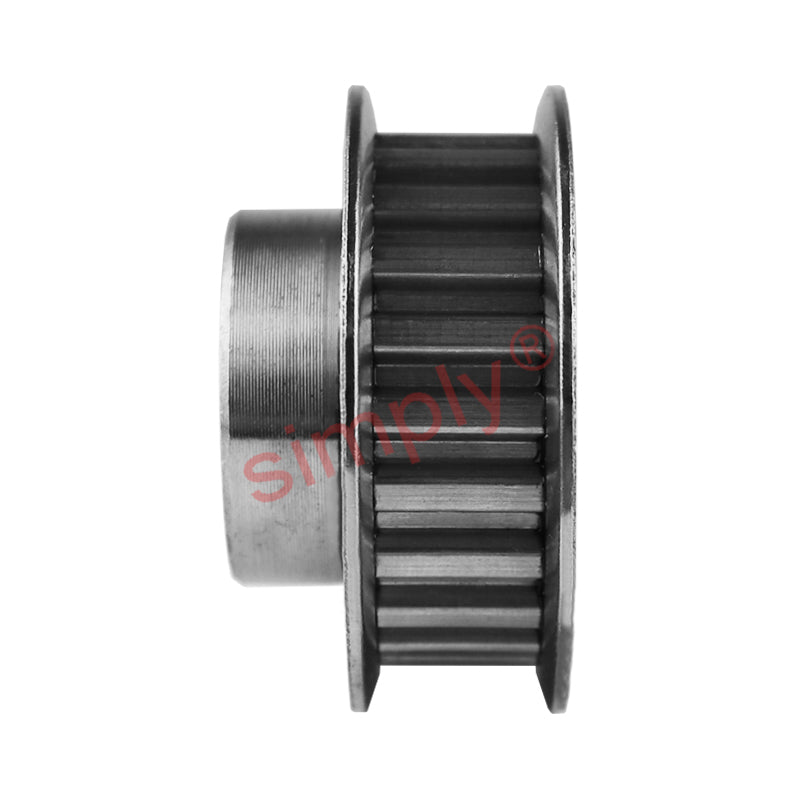

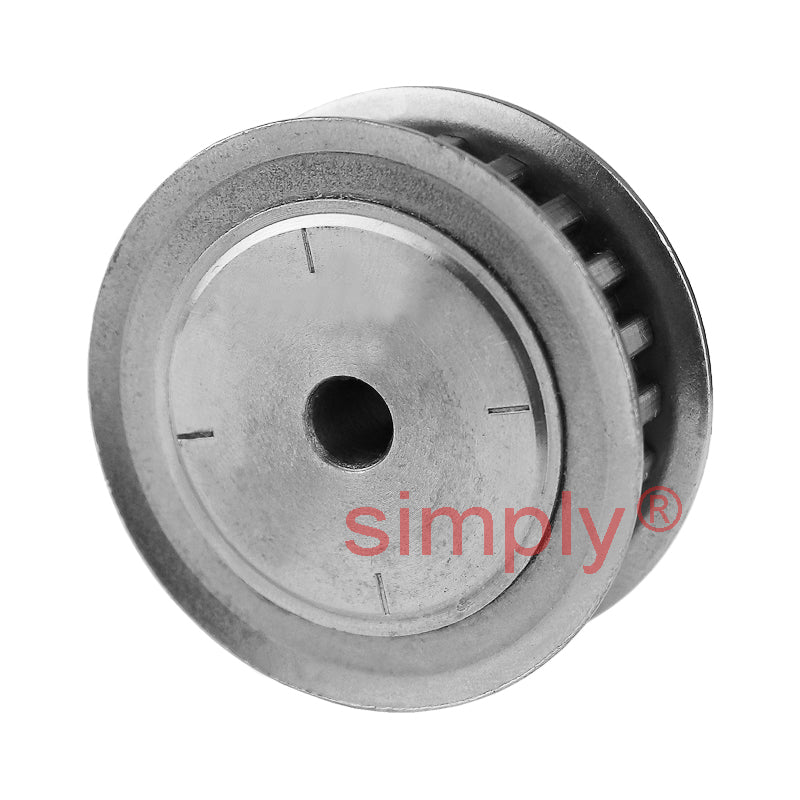

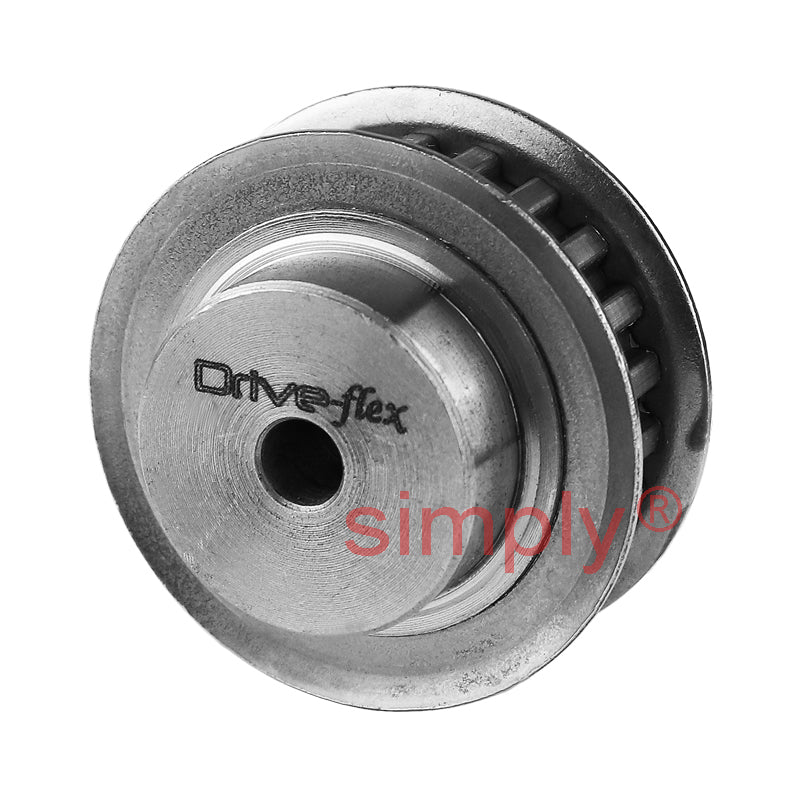

P22-MXL-025F - 0.08 inch Pitch 22 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt

Name: P22-MXL-025F - 0.08 inch Pitch 22 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt
Brand: Drive-Flex
SKU: P22-MXL-025F
Price: 19.76 USD
Availability: InStock

$19.76 ex VAT

Sale Sold out

Equivalent to: P22MXL025F

In stock

Price Break

3+ $13.23

5+ $12.49

9+ $12.34

19+ $12.19

49+ $12.04

74+ $11.90

99+ $11.15

199+ $11.00

249+ $10.85

499+ $10.71

999+ $10.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Teeth:: 22
Material:: Aluminium
Belt Width Approx:: 6.35mm = 0.25 (1/4) inch
Pitch:: 2.03mm = 0.08 inch
Item Type:: Flanged Pilot Bored Pulley

Technical

No.teeth	22
Dp	14.23mm
De	13.72mm
Df	17mm
Dm	10mm
Fw	11mm
L	16mm
Bore (d)	3mm
No. Flanges	2
Material	Aluminium
Bore	Pilot Bored
Belt Width	6.35mm = 0.25 (1/4) inch
Pitch	2.03mm = 0.08 inch
