SKU: P24-MXL-025F

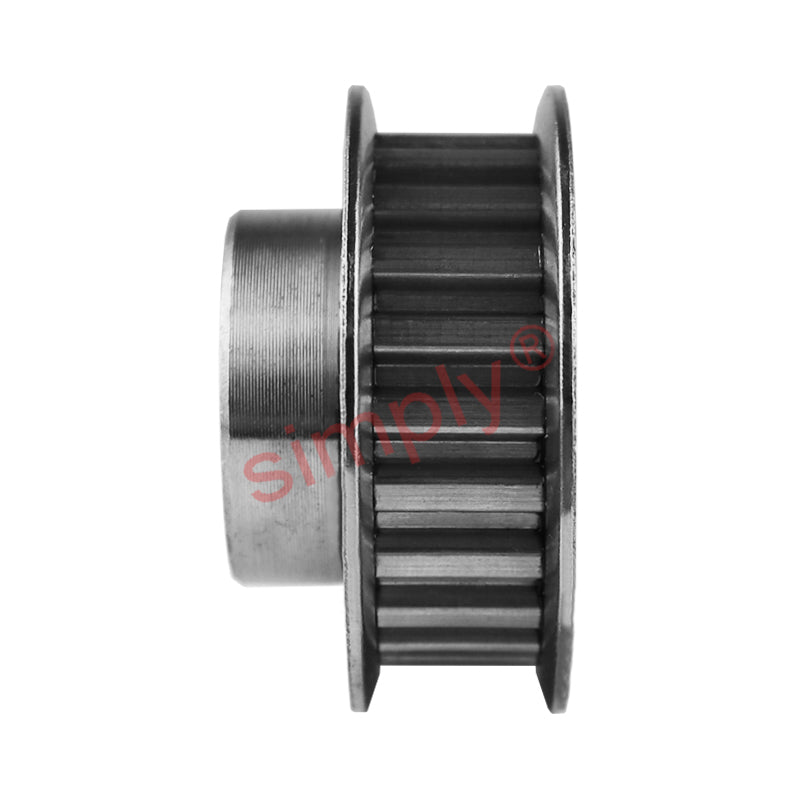

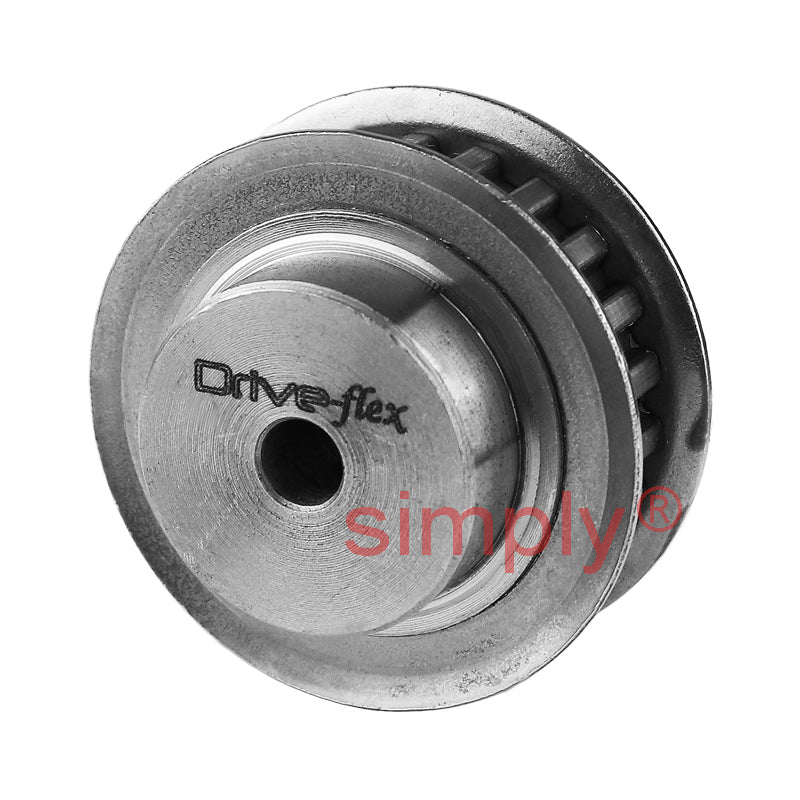

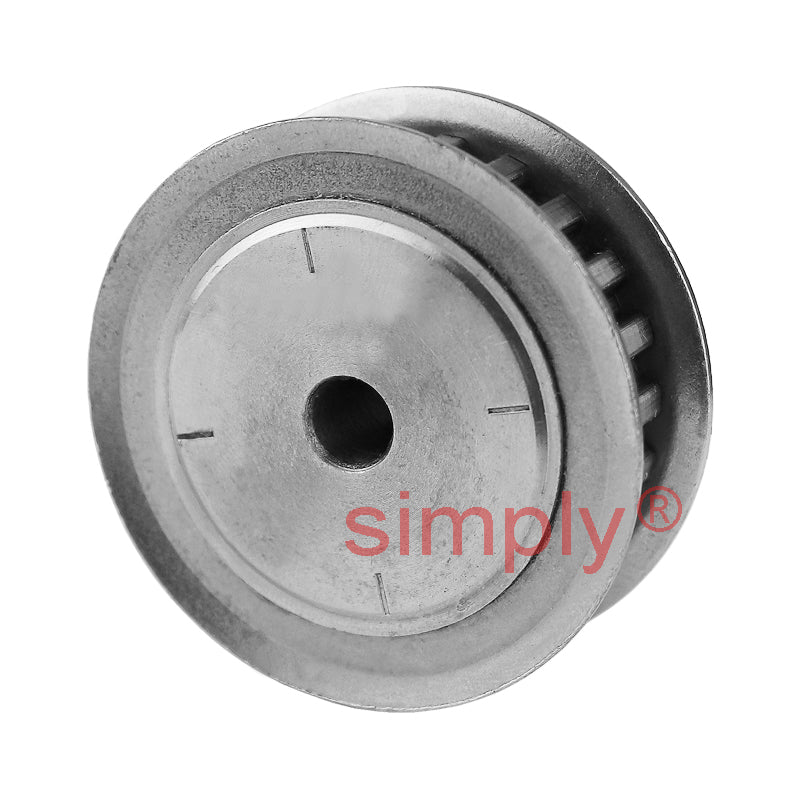

P24-MXL-025F - 0.08 inch Pitch 24 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt

Name: P24-MXL-025F - 0.08 inch Pitch 24 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt
Brand: Drive-Flex
SKU: P24-MXL-025F
Price: 20.52 USD
Availability: InStock

$20.52 ex VAT

Sale Sold out

Equivalent to: P24MXL025F

In stock

Price Break

3+ $13.74

5+ $12.97

9+ $12.81

19+ $12.66

49+ $12.50

74+ $12.35

99+ $11.58

199+ $11.42

249+ $11.27

499+ $11.11

999+ $10.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Teeth:: 24
Material:: Aluminium
Belt Width Approx:: 6.35mm = 0.25 (1/4) inch
Pitch:: 2.03mm = 0.08 inch
Item Type:: Flanged Pilot Bored Pulley

Technical

No.teeth	24
Dp	15.52mm
De	15.01mm
Df	20mm
Dm	10mm
Fw	11mm
L	16mm
Bore (d)	3mm
No. Flanges	2
Material	Aluminium
Bore	Pilot Bored
Belt Width	6.35mm = 0.25 (1/4) inch
Pitch	2.03mm = 0.08 inch
