SKU: P44-MXL-025F

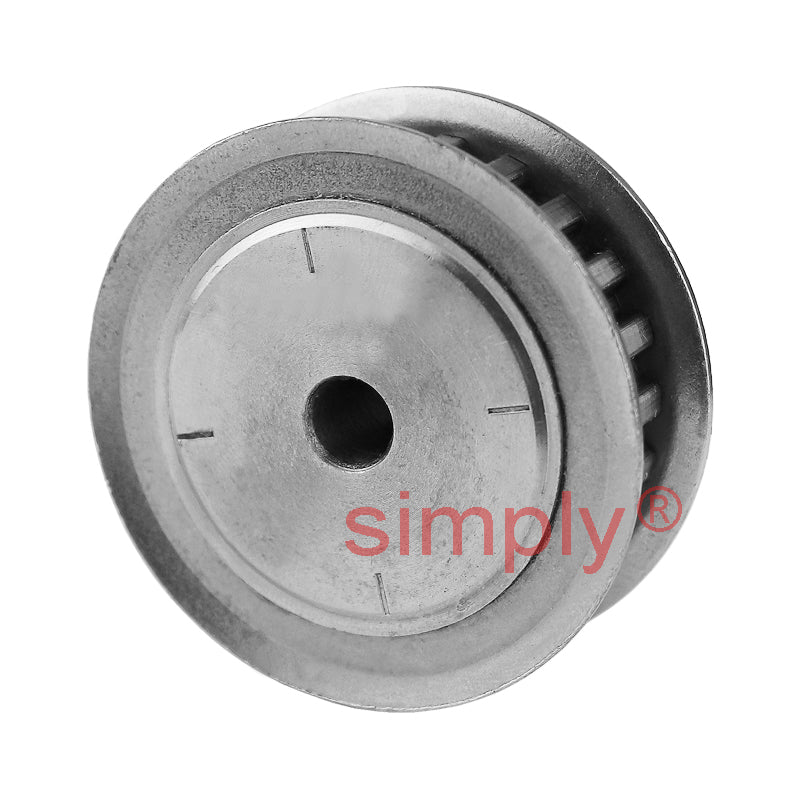

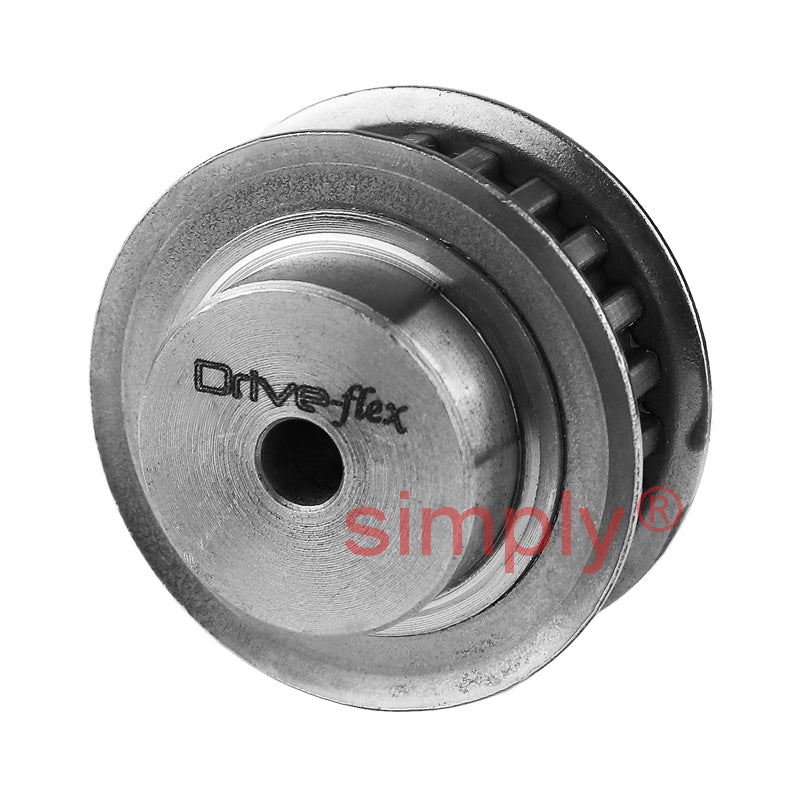

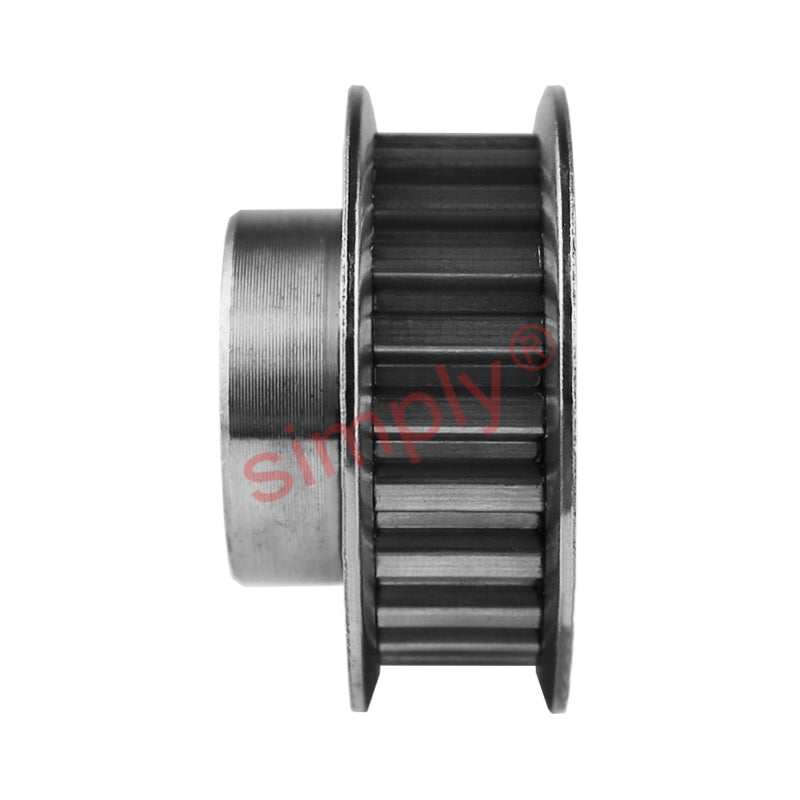

P44-MXL-025F - 0.08 inch Pitch 44 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt

Name: P44-MXL-025F - 0.08 inch Pitch 44 Tooth Flanged Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt
Brand: Drive-Flex
SKU: P44-MXL-025F
Price: 23.57 USD
Availability: InStock

$23.57 ex VAT

Sale Sold out

Equivalent to: P44MXL025F

In stock

Price Break

3+ $15.78

5+ $14.90

9+ $14.72

19+ $14.54

49+ $14.37

74+ $14.19

99+ $13.30

199+ $13.12

249+ $12.95

499+ $12.77

999+ $12.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Drive-Flex - High Quality
Teeth:: 44
Material:: Aluminium
Belt Width Approx:: 6.35mm = 0.25 (1/4) inch
Pitch:: 2.03mm = 0.08 inch
Item Type:: Flanged Pilot Bored Pulley

Technical

No.teeth	44
Dp	28.46mm
De	27.95mm
Df	36mm
Dm	18mm
Fw	11mm
L	16mm
Bore (d)	5mm
No. Flanges	2
Material	Aluminium
Bore	Pilot Bored
Belt Width	6.35mm = 0.25 (1/4) inch
Pitch	2.03mm = 0.08 inch
