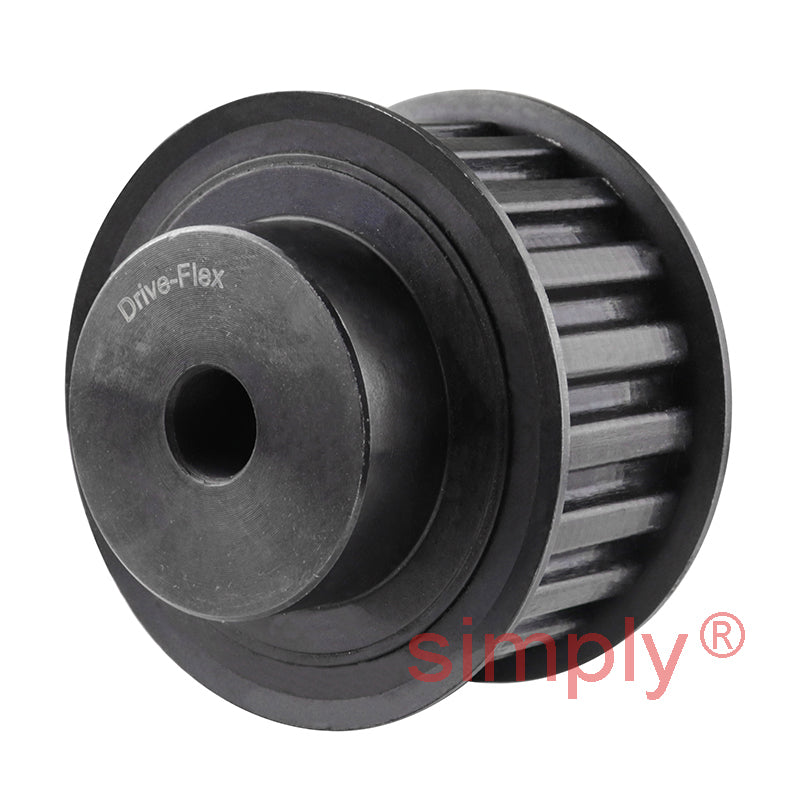

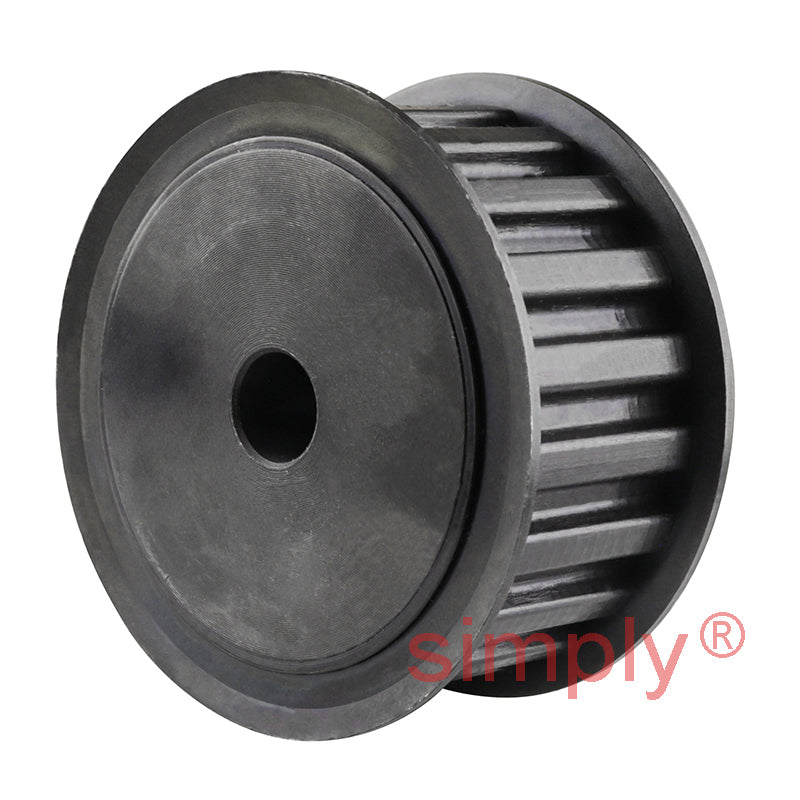

• P45-H-150F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 1-1/2 inch Wide Belts
  • P45-H-150F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 1-1/2 inch Wide Belts
  • P45-H-150F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 1-1/2 inch Wide Belts
1 3

SKU: P45-H-150F

P45-H-150F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 1-1/2 inch Wide Belts

P45-H-150F - 1/2 inch Pitch 45 Tooth Flanged Pilot Bored Cast Iron Timing Pulley for 1-1/2 inch Wide Belts
$82.64 ex VAT
$82.64 ex VAT
Sale Sold out

Equivalent to: P45H150F

In stock

Price Break
3+ $55.36
5+ $52.25
9+ $51.63
19+ $51.01
49+ $50.39
74+ $49.76
99+ $46.65
199+ $46.03
249+ $45.41
499+ $44.79
999+ $43.54

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Imperial Pilot Bore Timing Pulley: Imperial timing pulleys are available in both taper and pilot bore. The pulleys depending on the size are made from either Aluminium 6082, C45 Steel with black oxide treated surface or Cast Iron EN-GJL-200 and black phosphate. Where applicable flanges are made from S235JR Steel. Timing belt life can be increased with the proper pulley reducing running costs of your machinery.
Benefits: Available in a wide range of diameters and number of teeth along with standard widths.

Brand / Quality:
Drive-Flex - High Quality
Teeth:
45
Material:
Cast Iron
Belt Width Approx:
38.1mm = 1.5 (1-1/2) inch
Pitch:
12.7mm = 0.5 (1/2) inch
Item Type:
Flanged Pilot Bored Pulley
Technical
No. teeth 45
Dp 181.91mm
De 180.54mm
Df 192mm
Dm 80mm
F 46mm
L 58mm
d 19
No. flanges 2
Material Cast Iron
Bore Pilot Bored
Belt Width 38.1mm = 1.5 (1-1/2) inch
Pitch 12.7mm = 0.5 (1/2) inch
