• P48-MXL-025 - 0.08 inch Pitch 48 Tooth Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt
  • P48-MXL-025 - 0.08 inch Pitch 48 Tooth Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt
  • P48-MXL-025 - 0.08 inch Pitch 48 Tooth Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt
1 3

SKU: P48-MXL-025

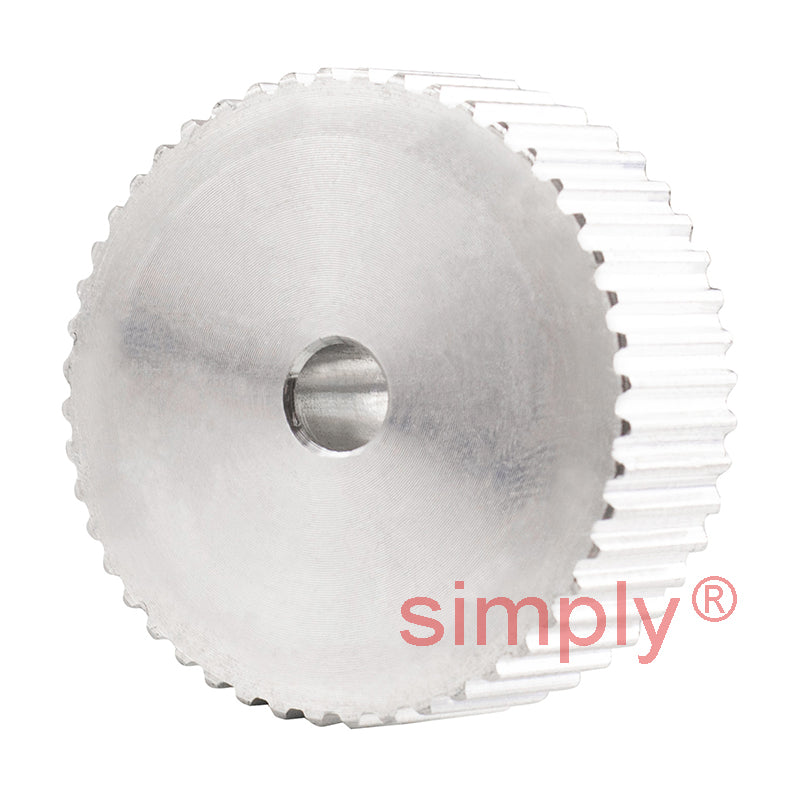

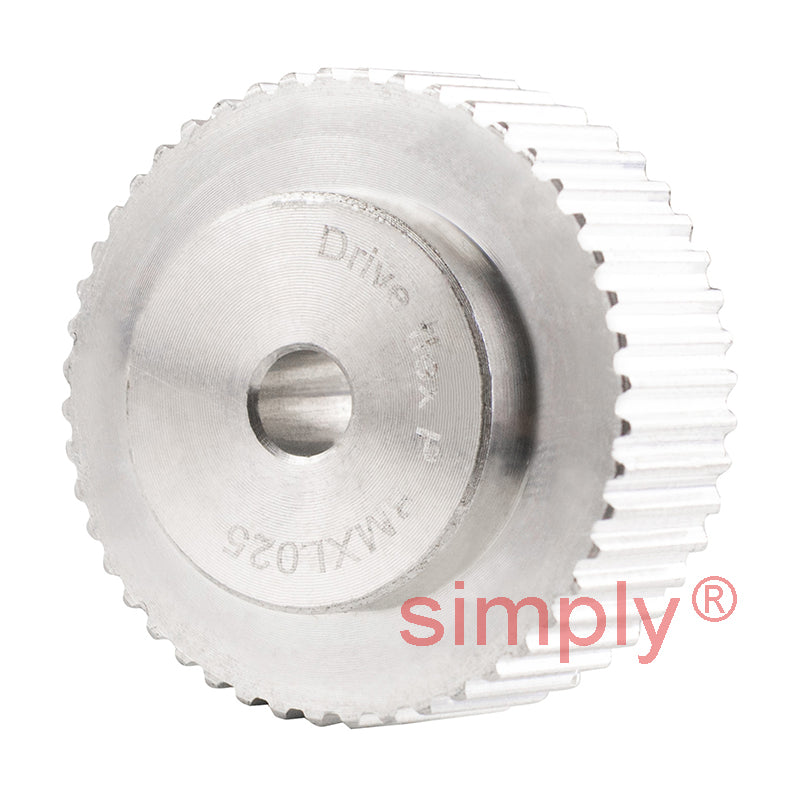

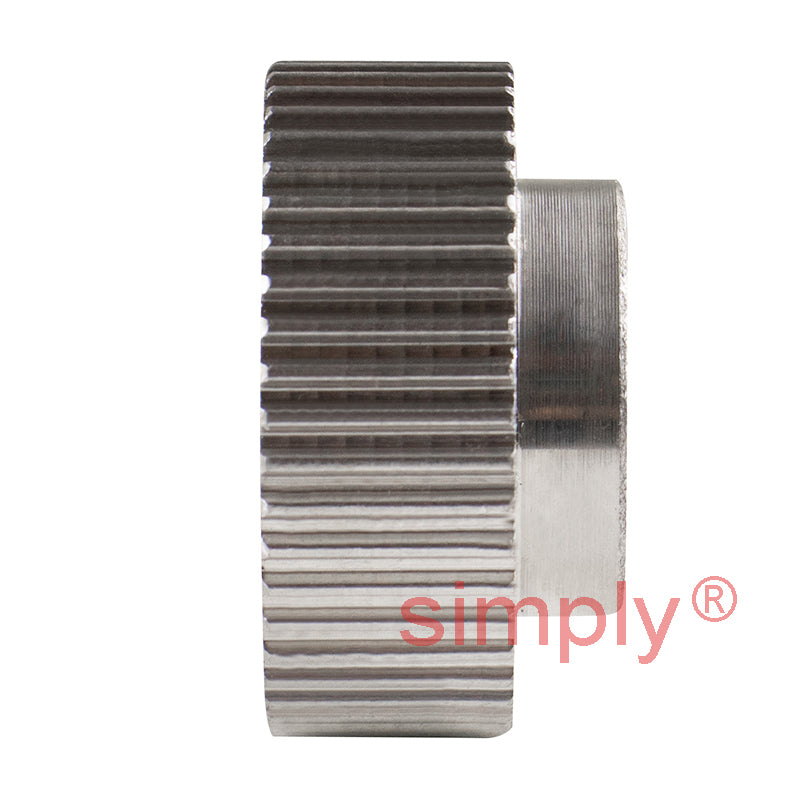

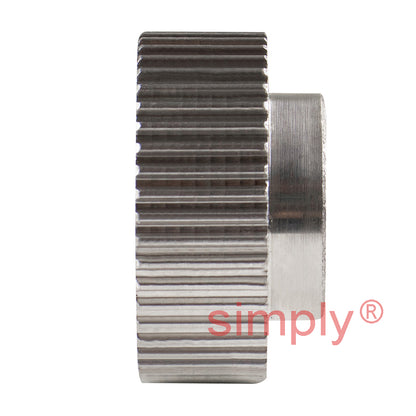

P48-MXL-025 - 0.08 inch Pitch 48 Tooth Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt

P48-MXL-025 - 0.08 inch Pitch 48 Tooth Pilot Bore Aluminium Timing Pulley for 1/4 inch Wide Belt
$27.49 ex VAT
$27.49 ex VAT
Sale Sold out

Equivalent to: P48MXL025

In stock

Price Break
3+ $18.42
5+ $17.38
9+ $17.17
19+ $16.97
49+ $16.76
74+ $16.55
99+ $15.52
199+ $15.31
249+ $15.11
499+ $14.90
999+ $14.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
48
Material:
Aluminium
Belt Width Approx:
6.35mm = 0.25 (1/4) inch
Pitch:
2.03mm = 0.08 inch
Item Type:
Flangeless Pilot Bored Pulley
Technical
No.teeth 48
Dp 31.05mm
De 30.54mm
Dm 20mm
Fw 11mm
L 16mm
Bore (d) 5mm
Material Aluminium
Bore Pilot Bored
Belt Width 6.35mm = 0.25 (1/4) inch
Pitch 2.03mm = 0.08 inch
