• P72-XL-037 - 1/5 inch Pitch 72 Tooth Pilot Bore Aluminium Timing Pulley for 3/8 inch Wide Belt
1 1

SKU: P72-XL-037

P72-XL-037 - 1/5 inch Pitch 72 Tooth Pilot Bore Aluminium Timing Pulley for 3/8 inch Wide Belt

P72-XL-037 - 1/5 inch Pitch 72 Tooth Pilot Bore Aluminium Timing Pulley for 3/8 inch Wide Belt
$48.67 ex VAT
$48.67 ex VAT
Sale Sold out

Equivalent to: P72XL037

In stock

Price Break
3+ $32.60
5+ $30.77
9+ $30.40
19+ $30.04
49+ $29.67
74+ $29.30
99+ $27.47
199+ $27.10
249+ $26.74
499+ $26.37
999+ $25.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Drive-Flex - High Quality
Teeth:
72
Material:
Aluminium
Belt Width Approx:
9.53mm = 0.375 (3/8) inch
Pitch:
5.08mm = 0.2 (1/5) inch
Item Type:
Flangeless Pilot Bored Pulley

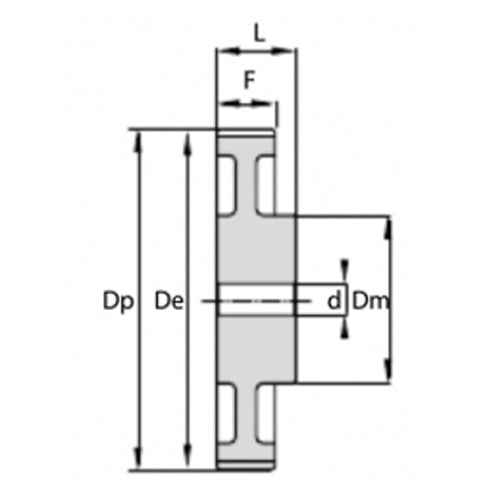

Technical
No.teeth 72
Dp 116.42mm
De 115.92mm
Dm 45mm
Fw 14.3mm
L 25mm
Bore (d) 10mm
Material Aluminium
Bore Pilot Bored
Belt Width 9.53mm = 0.375 (3/8) inch
Pitch 5.08mm = 0.2 (1/5) inch
