SKU: PB_22-H-100F-DUN

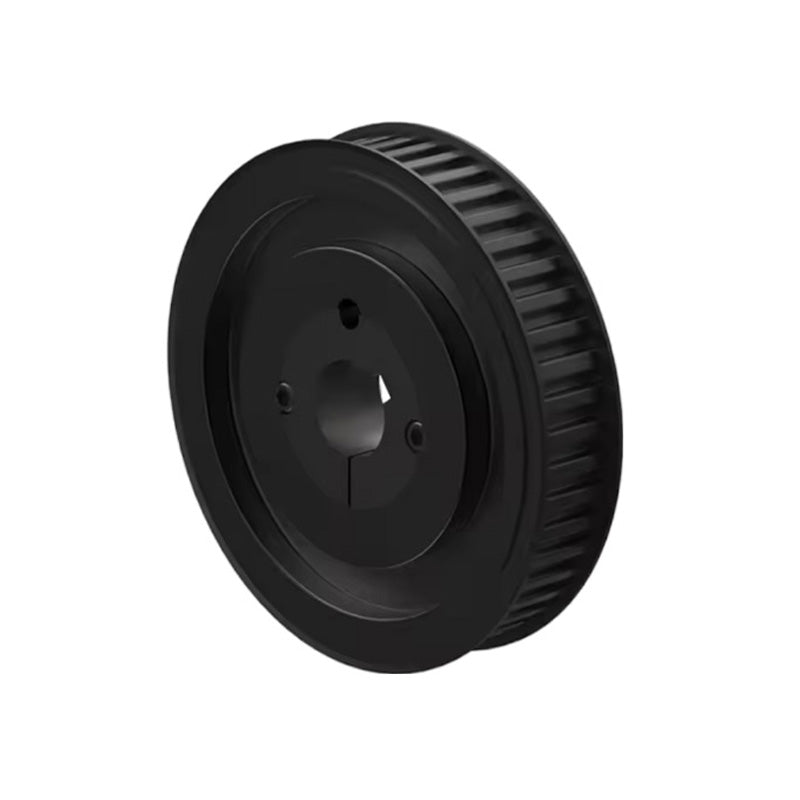

Dunlop 22-H-100F Belt Number H 22 Teeth Imperial Steel Pilot Bore Timing Pulley With Flanges (Bush not Incl.)
Dunlop 22-H-100F Belt Number H 22 Teeth Imperial Steel Pilot Bore Timing Pulley With Flanges (Bush not Incl.)
Out of stock
Share this product
Description
Description
- Brand / Quality:
- Dunlop - Good Quality
- Bore:
- 44mm
- Outside Diameter:
- 87.57mm
- Width:
- 33.3mm
- Material:
- Steel
- Belt Number:
- H100
- Number of Teeth:
- 22
- Pitch Circle Diameter:
- 88.94mm
Technical
Technical
| Number of Teeth | 22 |
|---|---|
| Belt Number | H |
| Belt Width | 25.4mm |
| Pitch Circle Diameter R | 88.94mm |
| Outside Diameter S | 87.57mm |
| Flange Diameter Øe | 94mm |
| Hub Diameter H | 70mm |
| Pulley Width W | 33.3mm |
| Bore Length Y | 44mm |
| Recess Z | 10.7mm |
| Weight | 1.82kg |
