• INA PB12XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 12mm Bore
  • INA
1 2

SKU: PB12-XL-INA

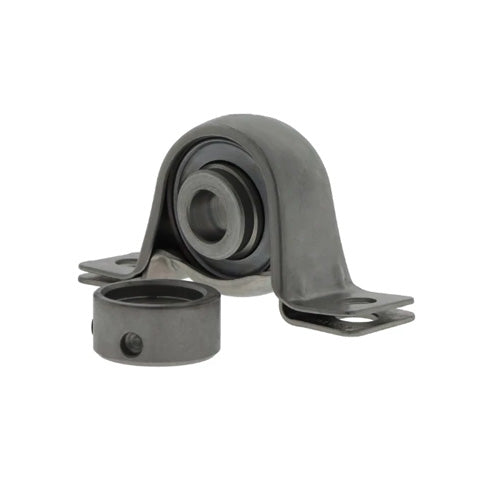

INA PB12XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 12mm Bore

INA PB12XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 12mm Bore
$30.96 ex VAT
$30.96 ex VAT
Sale Sold out

In stock

Price Break
4+ $20.74
9+ $19.57
19+ $19.34
29+ $19.11
39+ $18.87
49+ $18.64
59+ $17.48
69+ $17.24
79+ $17.01
89+ $16.78
99+ $16.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
12mm
Style:
PB
Bolt Hole Centres:
68mm
Technical
d 12mm
L 85.7mm
H2 43.2mm
A 25.4mm
A1 18.4mm
B1 28.6mmd3 max
28.4mm H
22.2mm H1
2.6mm J
68mm N
9.5mm S1
22.1mm Mass
0.17 kg Load carrying capacity of housing Cor G
1350 N Basic dynamic load rating Cr
10100 N Basic static load rating Cor
4750 N Designation of housing
GEH40-BT? Designation of bearing
RAE12-XL-NPP-B? N/A
