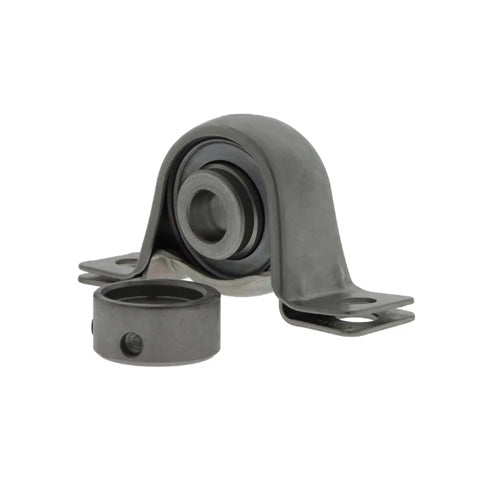

• INA PB15XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 15mm Bore
  • INA
1 2

SKU: PB15-XL-INA

INA PB15XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 15mm Bore

INA PB15XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 15mm Bore
$31.08 ex VAT
$31.08 ex VAT
Sale Sold out

In stock

Price Break
4+ $20.82
9+ $19.65
19+ $19.41
29+ $19.18
39+ $18.95
49+ $18.71
59+ $17.54
69+ $17.31
79+ $17.07
89+ $16.84
99+ $16.37

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
15mm
Style:
PB
Bolt Hole Centres:
68mm
Technical
d 15mm
L 85.7mm
H2 43.2mm
A 25.4mm
A1 18.4mm
B1 28.6mmd3 max
28.4mm H
22.2mm H1
2.6mm J
68mm N
9.5mm S1
22.1mm Mass
0.17 kg Load carrying capacity of housing Cor G
1350 N Basic dynamic load rating Cr
10100 N Basic static load rating Cor
4750 N Designation of housing
GEH40-BT? Designation of bearing
RAE15-XL-NPP-B? N/A
