• INA PB17XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 17mm Bore
  • INA
1 2

SKU: PB17-XL-INA

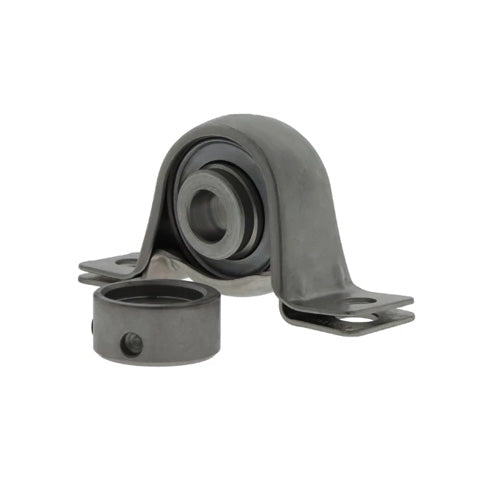

INA PB17XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 17mm Bore

INA PB17XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 17mm Bore
$31.25 ex VAT
$31.25 ex VAT
Sale Sold out

In stock

Price Break
4+ $20.93
9+ $19.76
19+ $19.52
29+ $19.29
39+ $19.05
49+ $18.82
59+ $17.64
69+ $17.40
79+ $17.17
89+ $16.93
99+ $16.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
INA - High Quality
Inside Diameter:
17mm
Style:
PB
Bolt Hole Centres:
68mm
Technical
d 17mm
L 85.7mm
H2 43.2mm
A 25.4mm
A1 18.4mm
B1 28.6mmd3 max
28.4mm H
22.2mm H1
2.6mm J
68mm N
9.5mm S1
22.1mm Mass
0.17 kg Load carrying capacity of housing Cor G
1350 N Basic dynamic load rating Cr
10100 N Basic static load rating Cor
4750 N Designation of housing
GEH40-BT? Designation of bearing
RAE17-XL-NPP-B? N/A
