SKU: PB30-XL-INA

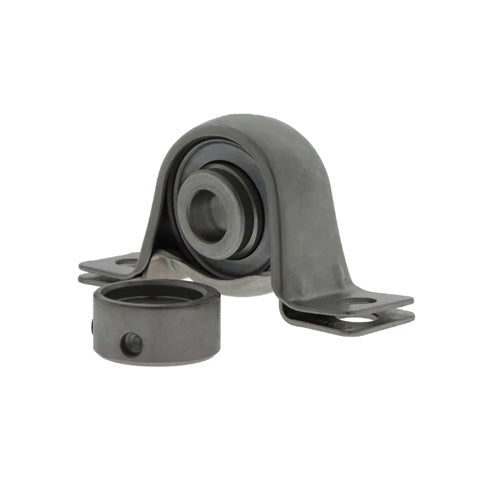

INA PB30XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 30mm Bore

Name: INA PB30XL Sheet Steel Plummer Block Housing with Eccentric Collar Insert 30mm Bore
Brand: INA
SKU: PB30-XL-INA
Price: 46.19 USD
Availability: InStock

$46.19 ex VAT

Sale Sold out

In stock

Price Break

4+ $30.94

9+ $29.20

19+ $28.85

29+ $28.50

39+ $28.16

49+ $27.81

59+ $26.07

69+ $25.72

79+ $25.37

89+ $25.03

99+ $24.33

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA Plummer Block Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This sheet steel housing is a two-piece unit with a moderate load carrying capacity and is Corrotect® coated which offers good protection against corrosion. This plummer block housing has a long base and is screw mounted to the adjacent construction by means of slots. The housings are screw mounted on the adjacent construction.
Benefits: Suitable for a lightweight construction, housing has Corrotect® coating, eccentric collar.

Brand / Quality:: INA - High Quality
Inside Diameter:: 30mm
Style:: PB
Bolt Hole Centres:: 95mm

Technical

d	30mm
L	117.5mm
H2	66.1mm
A	38mm
A1	26.5mm
B1	35.8mmd3 max
44mm	H
33.3mm	H1
4mm	J
95mm	N
11.5mm	S1
26.8mm	Mass
0.5 kg	Load carrying capacity of housing Cor G
2700 N	Basic dynamic load rating Cr
20700 N	Basic static load rating Cor
11300 N	Designation of housing
GEH62-BT?	Designation of bearing
RAE30-XL-NPP-B?	N/A
