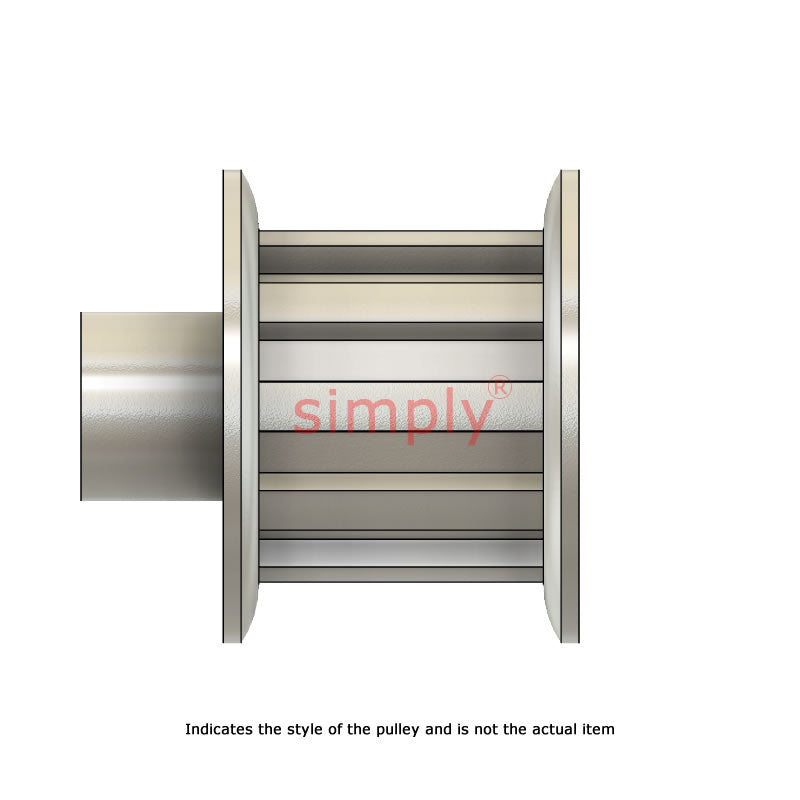

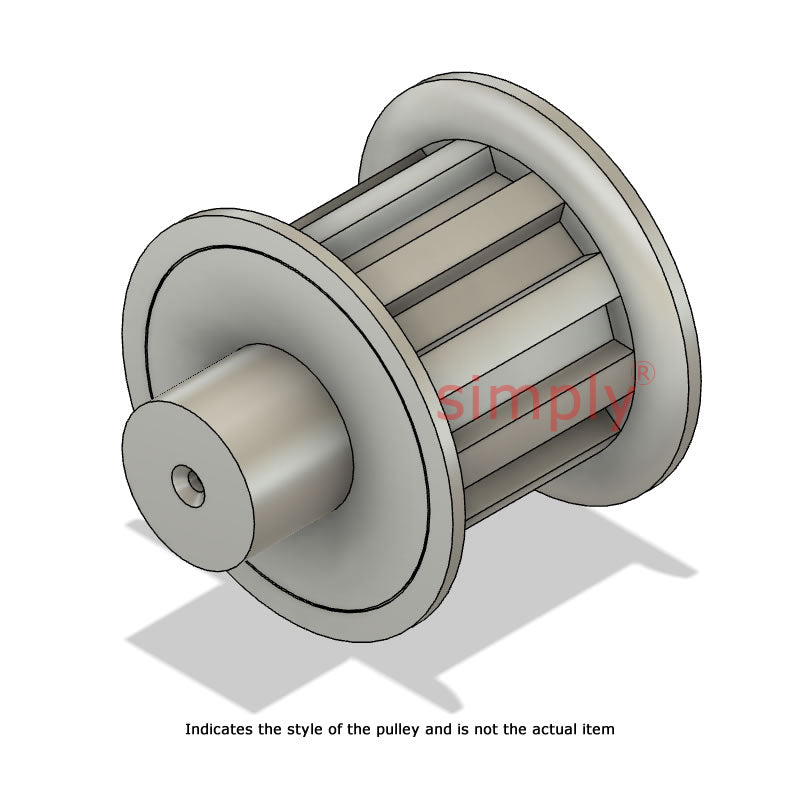

Aluminium Centre Drilled T5 Timing Pulley with Flanges 5mm Pitch 10 Tooth for 10mm Wide Belts
Aluminium Centre Drilled T5 Timing Pulley with Flanges 5mm Pitch 10 Tooth for 10mm Wide Belts
Aluminium Centre Drilled T5 Timing Pulley with Flanges 5mm Pitch 10 Tooth for 10mm Wide Belts
Aluminium Centre Drilled T5 Timing Pulley with Flanges 5mm Pitch 10 Tooth for 10mm Wide Belts

SKU: PBG21T5/10-2

Aluminium Centre Drilled T5 Timing Pulley with Flanges 5mm Pitch 10 Tooth for 10mm Wide Belts

$10.03 ex VAT
$10.03
ex VAT
Equivalent to: G21T5/10-2 AL 21T5/10-2
In stock

Quantity Price Breaks

3 $8.93
5 $8.43
10 $8.32
25 $8.22
49 $8.12
74 $8.02
99 $7.52
199 $7.42
249 $7.32
499 $7.22
999 $7.02
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Aluminium Centre Drilled T5 Timing Pulley with Flanges 5mm Pitch 10 Tooth for 10mm Wide Belts
Aluminium Centre Drilled T5 Timing Pulley with Flanges 5mm Pitch 10 Tooth for 10mm Wide Belts
SKU: PBG21T5/10-2

Aluminium Centre Drilled T5 Timing Pulley with Flanges 5mm Pitch 10 Tooth for 10mm Wide Belts

$10.03 ex VAT
$10.03
ex VAT

Description

06C2Q2ZN9V
Please note: These will be provided with a nominal bore, specific diameter measurement available on request.

Technical

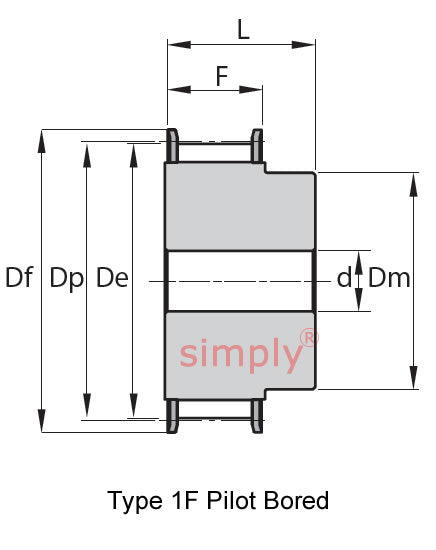

Number of Teeth = 10
Pitch = 5mm
Belt Width = 10mm
Pulley Type = 1F
De = 15.05mm
Dp = 15.92mm
Df = 19.5mm
Dm = 8mm
F = 15mm
L = 21mm
Max Bore = 6mm
No. Flanges = 2
