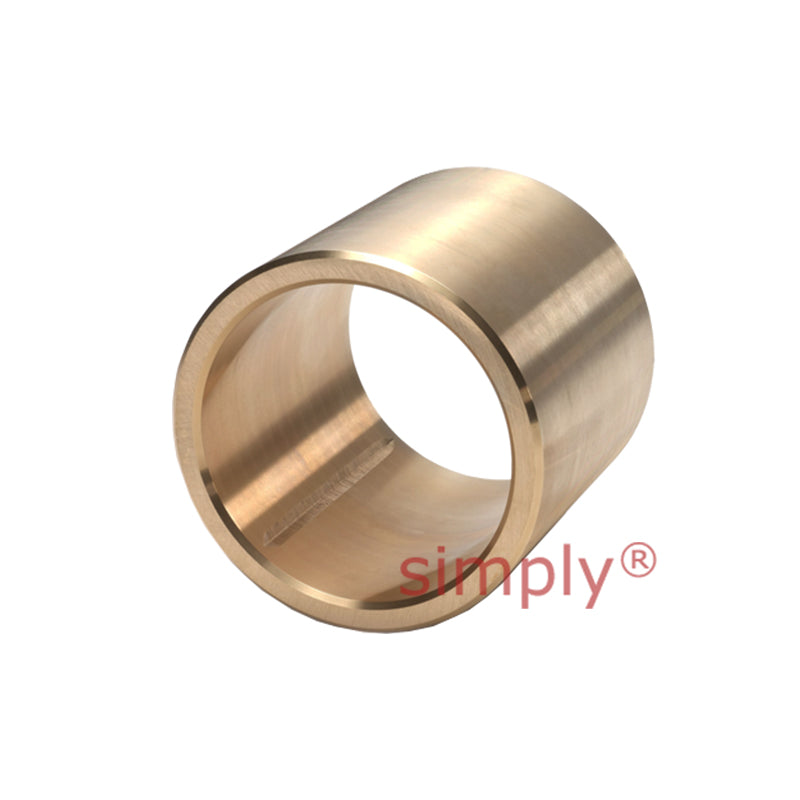

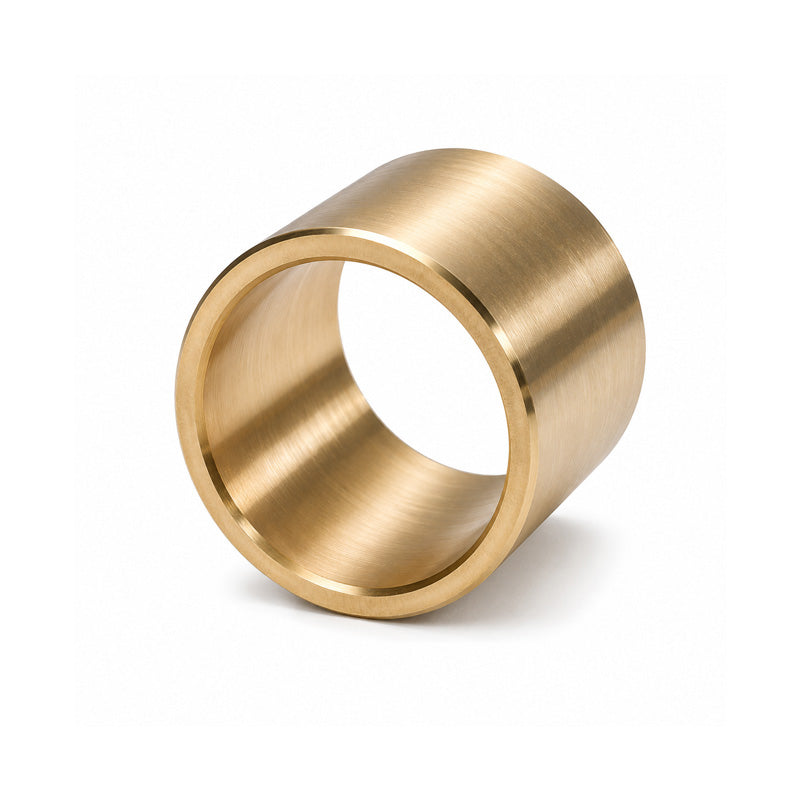

• PBM162230M1G1 Premier Budget Metric Plain Solid Bronze Bush 16x22x30mm
1 1

SKU: PBM162230M1G1-EU

PBM162230M1G1 Premier Budget Metric Plain Solid Bronze Bush 16x22x30mm

PBM162230M1G1 Premier Budget Metric Plain Solid Bronze Bush 16x22x30mm
$31.96 ex VAT
$31.96 ex VAT
Sale Sold out

Equivalent to: TBP 016/022 X 030

In stock

Price Break
9+ $21.40
19+ $20.20
29+ $19.96
39+ $19.72
49+ $19.48
69+ $19.24
99+ $18.04
199+ $17.80
249+ $17.56
499+ $17.32
999+ $16.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
16mm
Outside Diameter:
22mm
Length:
30mm
Technical
d 16mm
D 22mm
B 30mm
a 3mm
h 17mm
a Angle 105 deg
Tolerance shaft e7
Tolerance housing H7
Specific Dynamic Load Factor ( K ) 25 N/mm 2
Specific Static Load Factor ( K0 ) 45 N/mm 2
Permissable Sliding Velocity ( v ) min. 0 m/s
Permissable Sliding Velocity ( v ) max. 0.5 m/s
Coefficient of Friction ( y ) min. 0.08
Coefficient of Friction ( y ) max. 0.15
Weight 0.024kg
