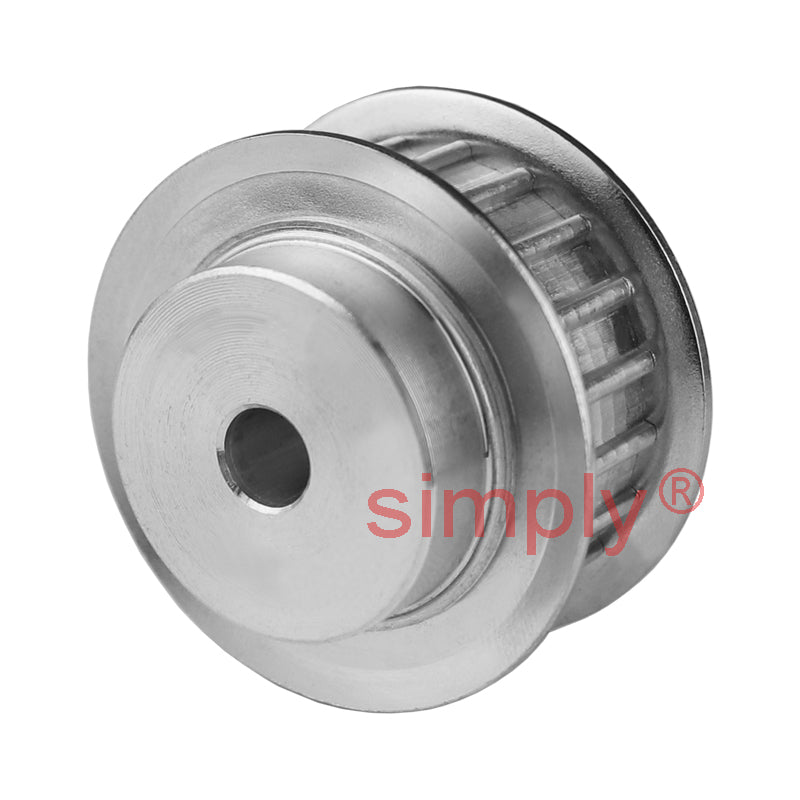

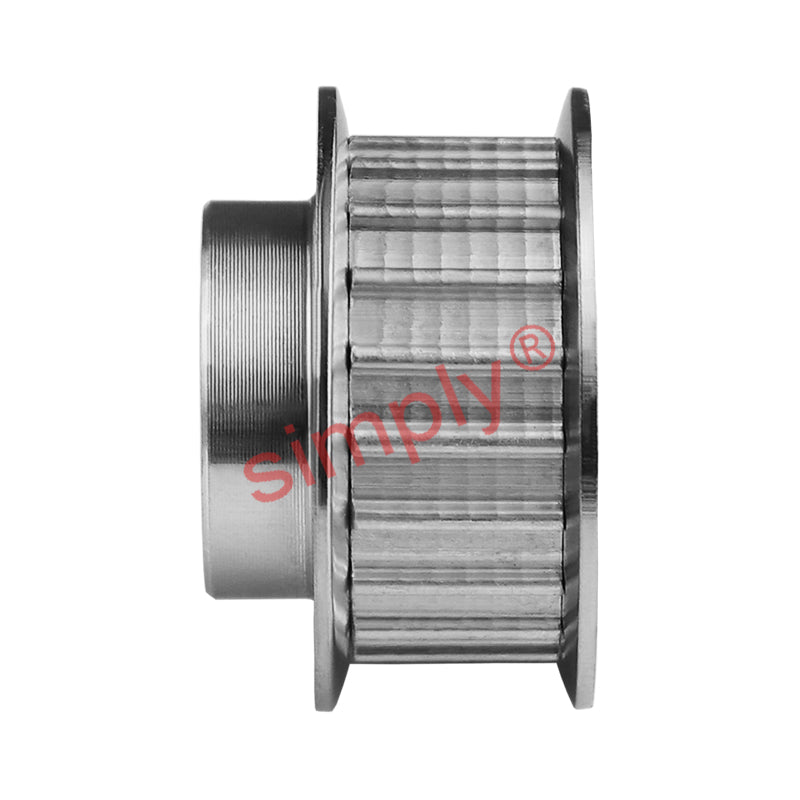

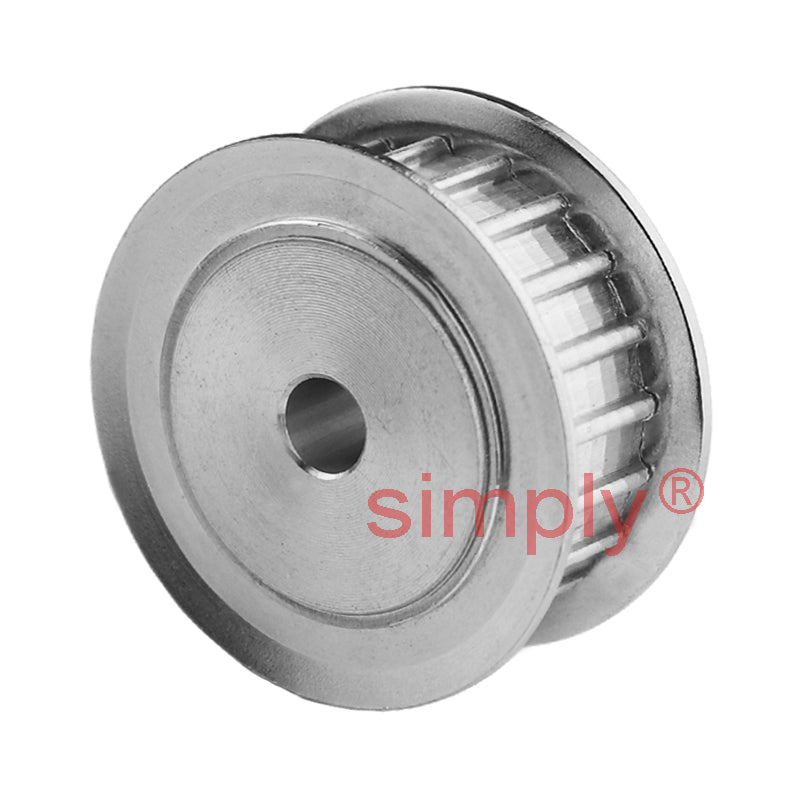

Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts
Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts
Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts
Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts
Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts
Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts

SKU: PBM21AT5/22-2

Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts

$11.73 ex VAT
$11.73
ex VAT
Equivalent to: M21AT5/22-2 AL21AT5/22-2
In stock

Quantity Price Breaks

3 $10.44
5 $9.85
10 $9.74
25 $9.62
49 $9.50
74 $9.38
99 $8.80
199 $8.68
249 $8.56
499 $8.45
999 $8.21
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts
Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts
Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts
SKU: PBM21AT5/22-2

Aluminium Pilot Bore AT5 Timing Pulley with Flanges 5mm Pitch 22 Tooth for 10mm Wide Belts

$11.73 ex VAT
$11.73
ex VAT

Description

06C2Q2ZN9V
Please note: These will be provided with a nominal bore, specific diameter measurement available on request.

Technical

Number of Teeth = 22
Pitch = 5mm
Belt Width = 10mm
Pulley Type = 1F
De = 33.85mm
Dp = 35.01mm
Df = 38mm
Dm = 24mm
F = 15mm
L = 21mm
Bore (d) = 6mm
= No. Flanges
2 = N/A
