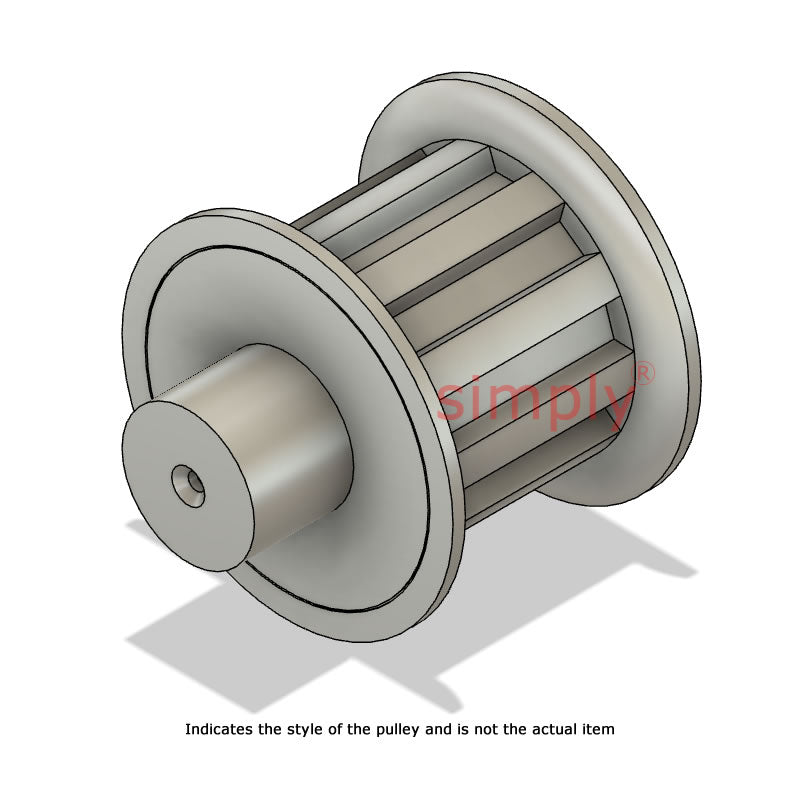

Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 12 Tooth for 16mm Wide Belts - Overall Width 27mm
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 12 Tooth for 16mm Wide Belts - Overall Width 27mm
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 12 Tooth for 16mm Wide Belts - Overall Width 27mm
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 12 Tooth for 16mm Wide Belts - Overall Width 27mm

SKU: PBM27AT5/12-2

Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 12 Tooth for 16mm Wide Belts - Overall Width 27mm

$9.65 ex VAT
$9.65
ex VAT
Equivalent to: M27AT5/12-2 AL 27AT5/12-2
In stock

Quantity Price Breaks

3 $8.59
5 $8.11
10 $8.01
25 $7.91
49 $7.82
74 $7.72
99 $7.24
199 $7.14
249 $7.04
499 $6.95
999 $6.76
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 12 Tooth for 16mm Wide Belts - Overall Width 27mm
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 12 Tooth for 16mm Wide Belts - Overall Width 27mm
SKU: PBM27AT5/12-2

Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 12 Tooth for 16mm Wide Belts - Overall Width 27mm

$9.65 ex VAT
$9.65
ex VAT

Description

06C2Q2ZN9V
Please note: These will be provided with a nominal bore, specific diameter measurement available on request.

Technical

Number of Teeth = 12
Pitch = 5mm
Belt Width = 16mm
Pulley Type = 1F
De = 17.85mm
Dp = 19.1mm
Df = 23mm
Dm = 11mm
F = 21mm
L = 27mm
= No. Flanges
2 = N/A
