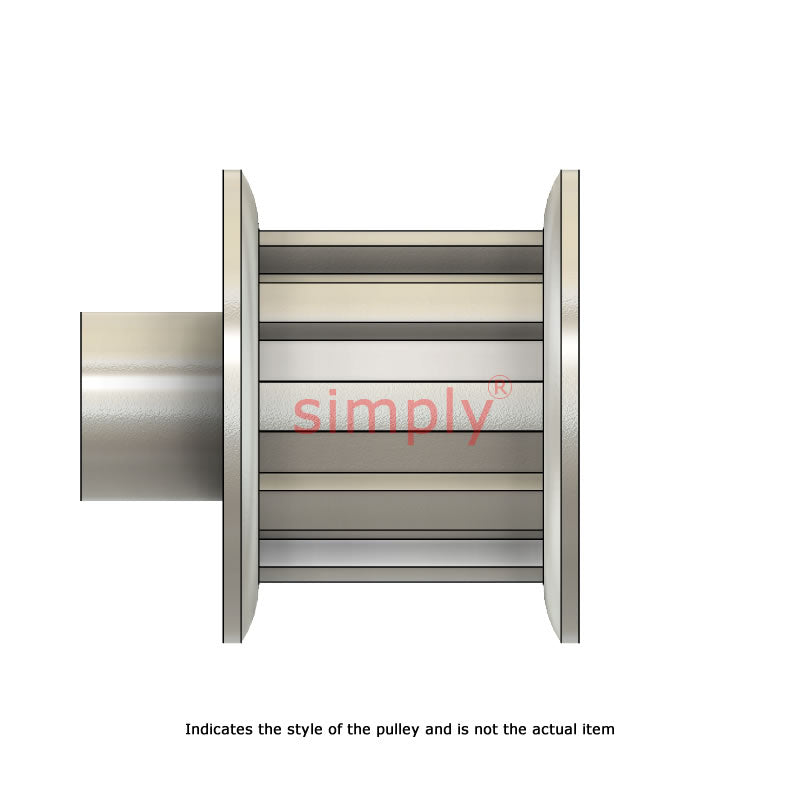

Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 14 Tooth for 16mm Wide Belts - Overall Width 27mm
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 14 Tooth for 16mm Wide Belts - Overall Width 27mm
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 14 Tooth for 16mm Wide Belts - Overall Width 27mm
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 14 Tooth for 16mm Wide Belts - Overall Width 27mm

SKU: PBM27AT5/14-2

Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 14 Tooth for 16mm Wide Belts - Overall Width 27mm

$10.15 ex VAT
$10.15
ex VAT
Equivalent to: M27AT5/14-2 AL 27AT5/14-2
Not in stock

Quantity Price Breaks

3 $9.03
5 $8.53
10 $8.42
25 $8.32
49 $8.22
74 $8.12
99 $7.61
199 $7.51
249 $7.41
499 $7.31
999 $7.11
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 14 Tooth for 16mm Wide Belts - Overall Width 27mm
Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 14 Tooth for 16mm Wide Belts - Overall Width 27mm
SKU: PBM27AT5/14-2

Aluminium Centre Drilled AT5 Timing Pulley with Flanges 5mm Pitch 14 Tooth for 16mm Wide Belts - Overall Width 27mm

$10.15 ex VAT
$10.15
ex VAT

Description

06C2Q2ZN9V
Please note: These will be provided with a nominal bore, specific diameter measurement available on request.

Technical

Number of Teeth = 14
Pitch = 5mm
Belt Width = 16mm
Pulley Type = 1F
De = 21.05mm
Dp = 22.28mm
Df = 25mm
Dm = 13mm
F = 21mm
L = 27mm
= No. Flanges
2 = N/A
