SKU: PBMF121810M1-EU

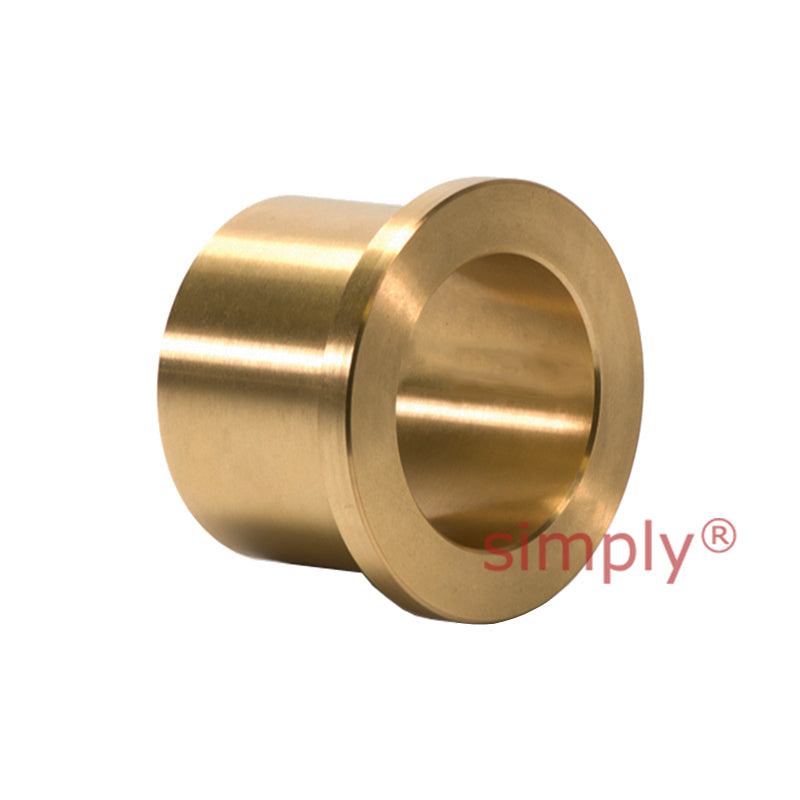

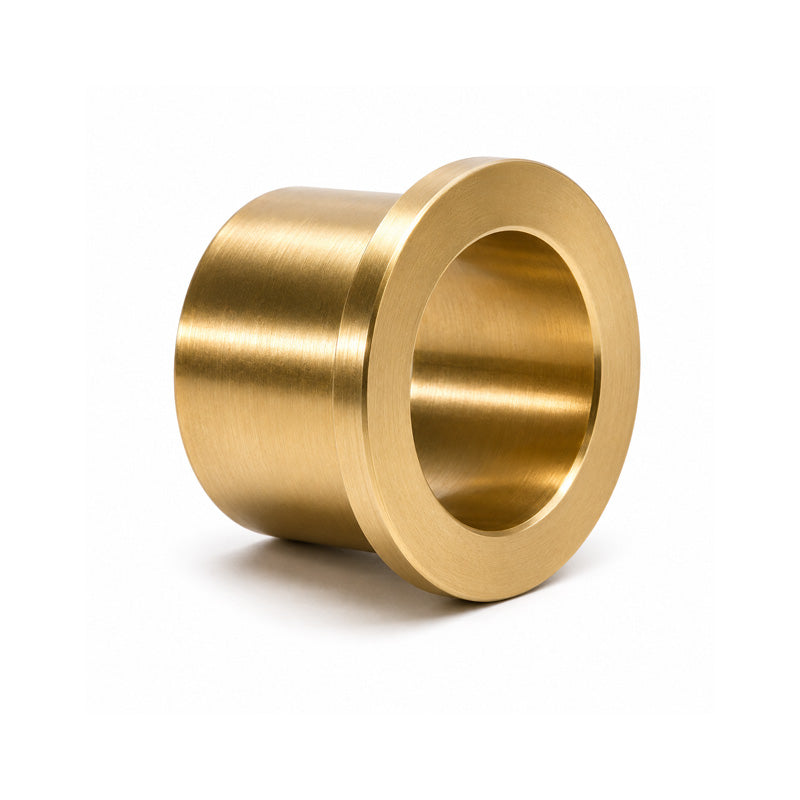

PBMF121810M1 Premier Budget Metric Flanged Solid Bronze Bush 12x18x10mm

Name: PBMF121810M1 Premier Budget Metric Flanged Solid Bronze Bush 12x18x10mm
Brand: Gen
SKU: PBMF121810M1-EU
Price: 15.21 USD
Availability: InStock

$15.21 ex VAT

Sale Sold out

Equivalent to: TBF 012/018 X 010

In stock

Price Break

9+ $10.19

19+ $9.62

29+ $9.51

39+ $9.39

49+ $9.28

69+ $9.16

99+ $8.59

199+ $8.48

249+ $8.36

499+ $8.25

999+ $8.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 18mm
Length:: 10mm

Technical

d	12mm
D	18mm
B	10mm
D1	22mm
B1	3mm
Tolerance shaft	e7
Tolerance housing	H7
Specific Dynamic Load Factor ( K )	25 N/mm 2
Specific Static Load Factor ( K0 )	45 N/mm 2
Permissable Sliding Velocity ( v )	min. 0 m/s
Permissable Sliding Velocity ( v )	max. 0.5 m/s
Coefficient of Friction ( y )	min. 0.08
Coefficient of Friction ( y )	max. 0.15
Weight	0.016kg
