SKU: PBMF121812M1-EU

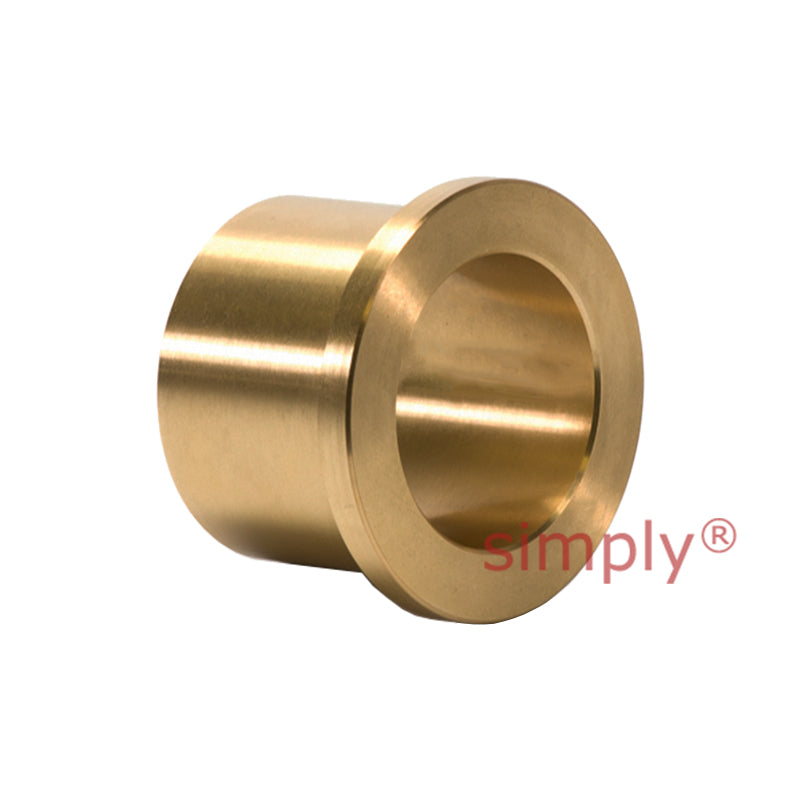

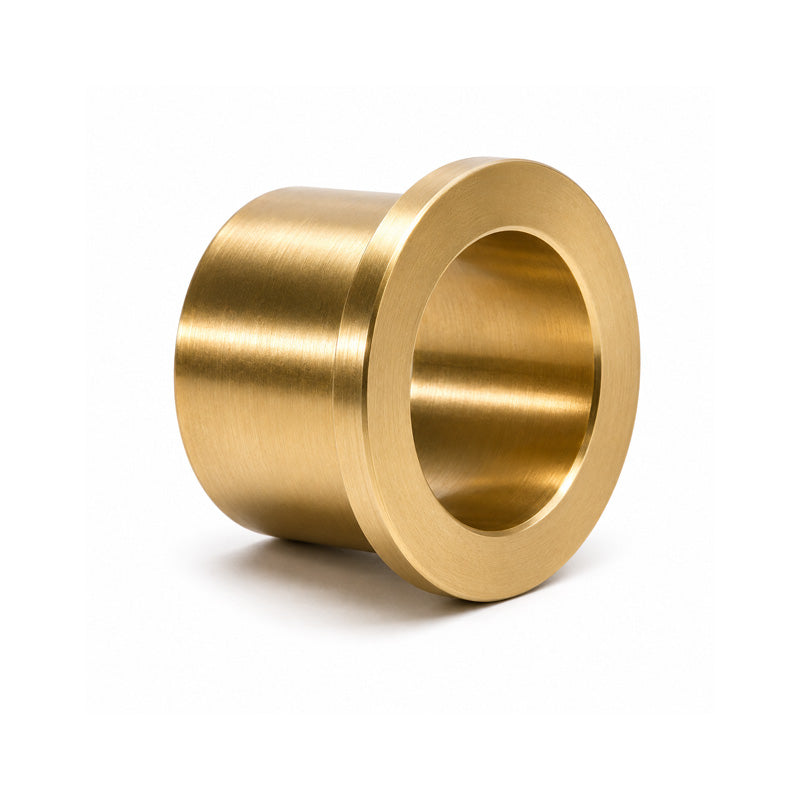

PBMF121812M1 Premier Budget Metric Flanged Solid Bronze Bush 12x18x12mm

Name: PBMF121812M1 Premier Budget Metric Flanged Solid Bronze Bush 12x18x12mm
Brand: Gen
SKU: PBMF121812M1-EU
Price: 18.14 USD
Availability: InStock

$18.14 ex VAT

Sale Sold out

Equivalent to: TBF 012/018 X 012

In stock

Price Break

9+ $12.15

19+ $11.46

29+ $11.33

39+ $11.19

49+ $11.05

69+ $10.92

99+ $10.24

199+ $10.10

249+ $9.96

499+ $9.83

999+ $9.55

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 12mm
Outside Diameter:: 18mm
Length:: 12mm

Technical

d	12mm
D	18mm
B	12mm
D1	22mm
B1	3mm
Tolerance shaft	e7
Tolerance housing	H7
Specific Dynamic Load Factor ( K )	25 N/mm 2
Specific Static Load Factor ( K0 )	45 N/mm 2
Permissable Sliding Velocity ( v )	min. 0 m/s
Permissable Sliding Velocity ( v )	max. 0.5 m/s
Coefficient of Friction ( y )	min. 0.08
Coefficient of Friction ( y )	max. 0.15
Weight	0.016kg
