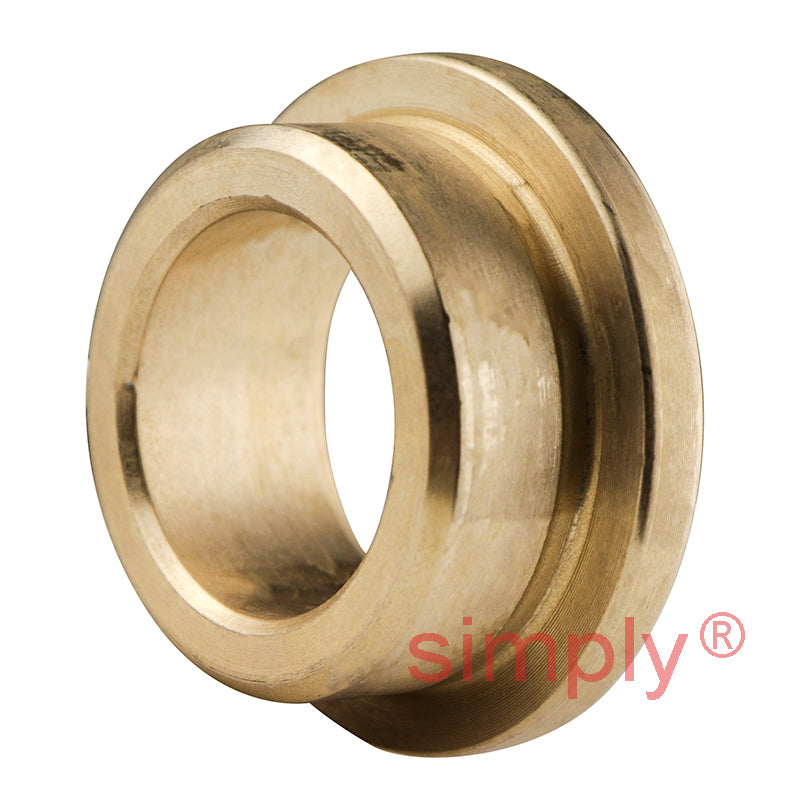

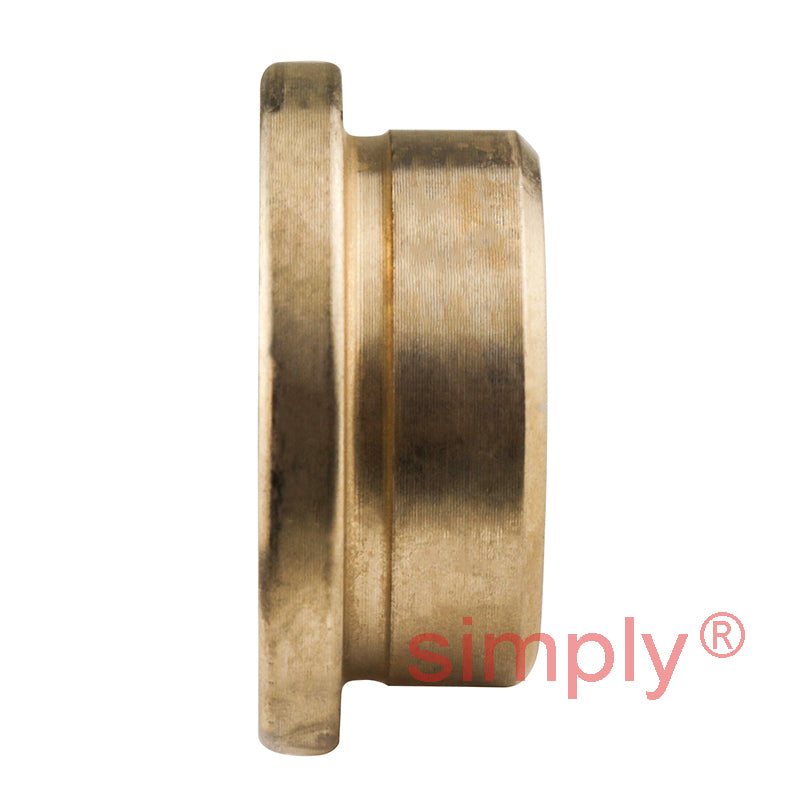

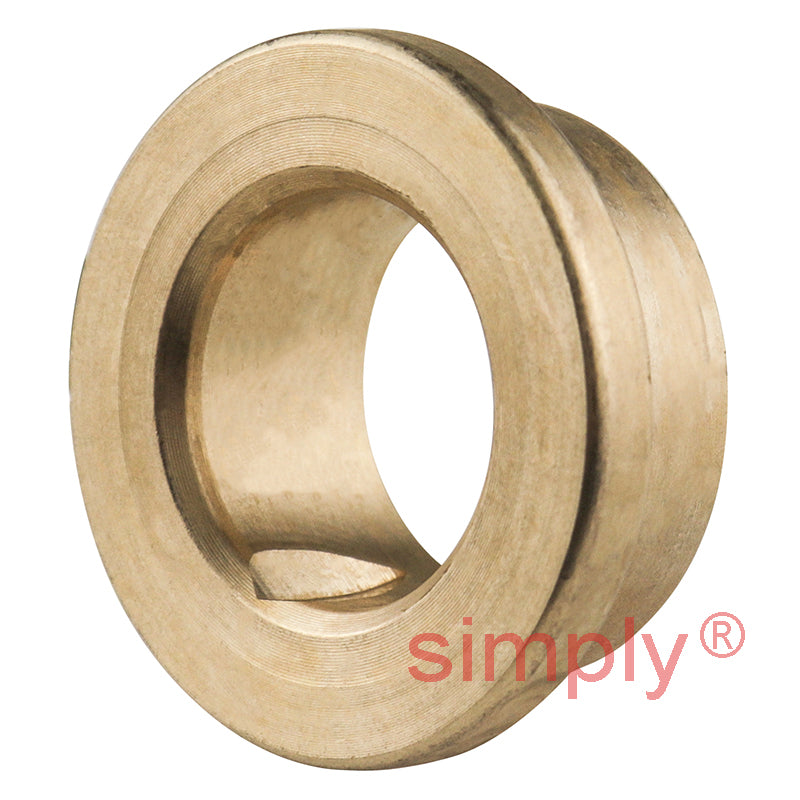

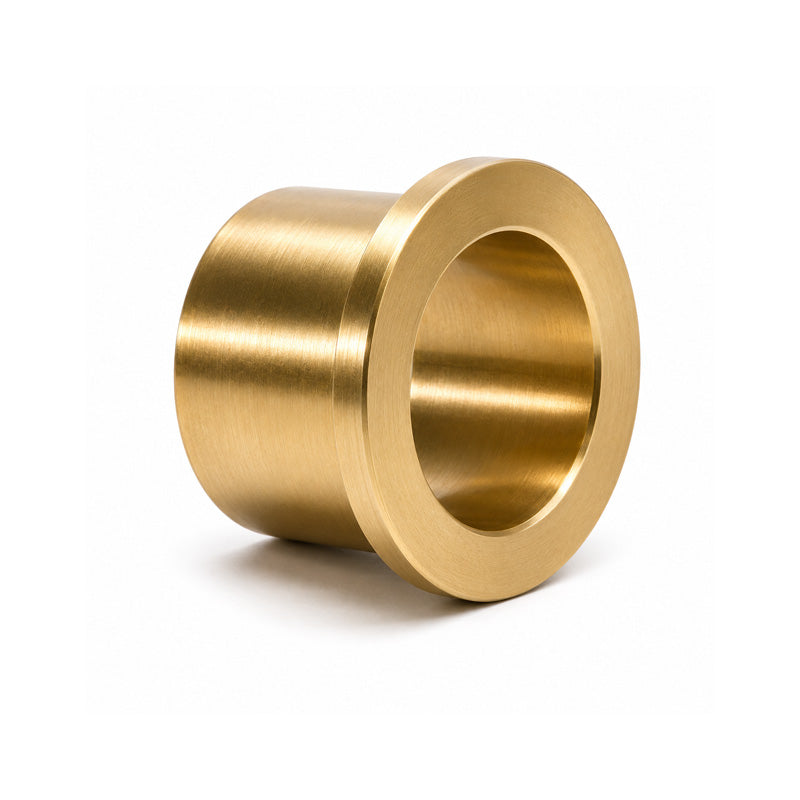

• PBMF142010M1G1 Premier Budget Metric Flanged Solid Bronze Bush 14x20x10mm
1 1

SKU: PBMF142010M1G1-EU

PBMF142010M1G1 Premier Budget Metric Flanged Solid Bronze Bush 14x20x10mm

PBMF142010M1G1 Premier Budget Metric Flanged Solid Bronze Bush 14x20x10mm
$21.15 ex VAT
$21.15 ex VAT
Sale Sold out

Equivalent to: TBF 014/020 X 010

In stock

Price Break
9+ $14.17
19+ $13.37
29+ $13.22
39+ $13.06
49+ $12.90
69+ $12.74
99+ $11.94
199+ $11.78
249+ $11.62
499+ $11.46
999+ $11.15

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
14mm
Outside Diameter:
20mm
Length:
10mm
Technical
d 14mm
D 20mm
B 10mm
D1 25mm
B1 3mm
a 3mm
h 15mm
a Angle 105 deg
Tolerance shaft e7
Tolerance housing H7
Specific Dynamic Load Factor ( K ) 25 N/mm 2
Specific Static Load Factor ( K0 ) 45 N/mm 2
Permissable Sliding Velocity ( v ) min. 0 m/s
Permissable Sliding Velocity ( v ) max. 0.5 m/s
Coefficient of Friction ( y ) min. 0.08
Coefficient of Friction ( y ) max. 0.15
Weight 0.019kg
