SKU: PBMF253525M1G1-EU

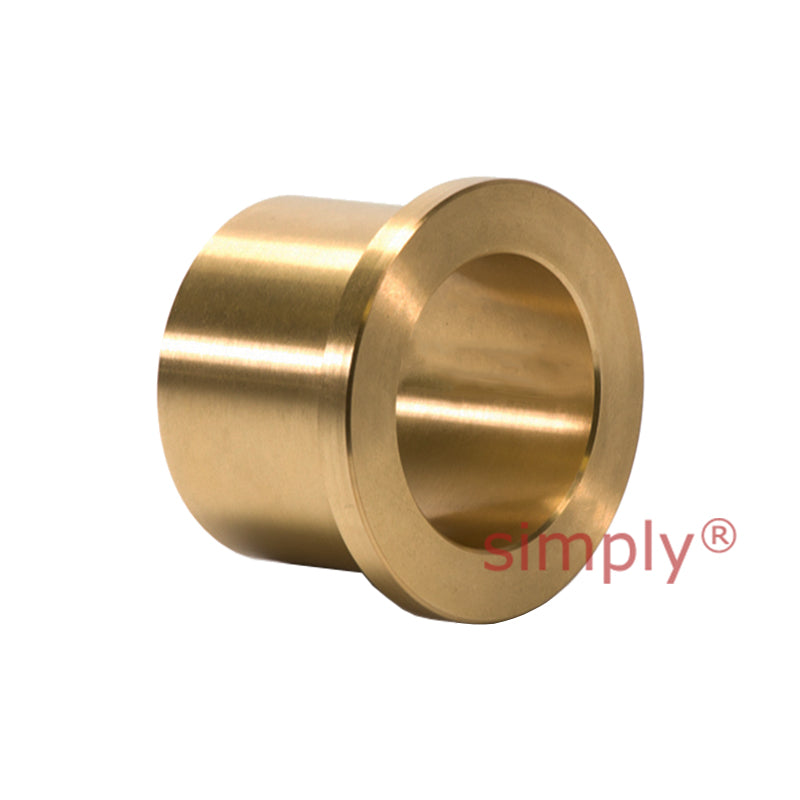

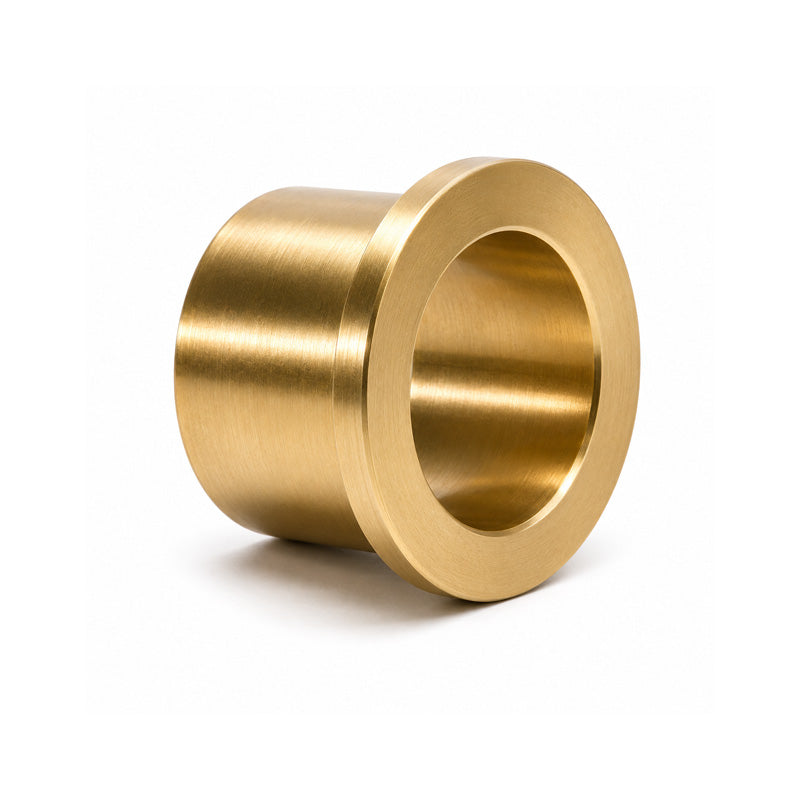

PBMF253525M1G1 Premier Budget Metric Flanged Solid Bronze Bush 25x35x25mm

Name: PBMF253525M1G1 Premier Budget Metric Flanged Solid Bronze Bush 25x35x25mm
Brand: Gen
SKU: PBMF253525M1G1-EU
Price: 25.68 USD
Availability: InStock

$25.68 ex VAT

Sale Sold out

Equivalent to: TBF 025/035 X 025

In stock

Price Break

9+ $17.20

19+ $16.24

29+ $16.04

39+ $15.85

49+ $15.66

69+ $15.46

99+ $14.50

199+ $14.30

249+ $14.11

499+ $13.92

999+ $13.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 25mm
Outside Diameter:: 35mm
Length:: 25mm

Technical

d	25mm
D	35mm
B	25mm
D1	45mm
B1	5mm
a	3mm
h	26mm
a Angle	124 deg
Tolerance shaft	e7
Tolerance housing	H7
Specific Dynamic Load Factor ( K )	25 N/mm 2
Specific Static Load Factor ( K0 )	45 N/mm 2
Permissable Sliding Velocity ( v )	min. 0 m/s
Permissable Sliding Velocity ( v )	max. 0.5 m/s
Coefficient of Friction ( y )	min. 0.08
Coefficient of Friction ( y )	max. 0.15
Weight	0.094kg
